GR-H860-60-H1-55 GROVE 60:1 H1 RIGHT ANGLE GEAR REDUCER GR8600510.55
GR-H860-60-H1-55 GROVE 60:1 H1 RIGHT ANGLE GEAR REDUCER GR8600510.55
Part Number:
GR8600510.55Manufacturer:
Grove GearManufacturer Part Number:
GR8600510.55GROVE Gearing products are Non-Returnable. Once the order is placed it cannot be canceled. Standard lead times are 5-10 business days. For urgent expedited orders please contact our office for availability.
Regular Price
USD
$
8,368
08
Shipping Details
Free No Rush Shipping
Weight:
321 lbsDimensions:
48 x 48 x 48 inchesHS Code:
8483.00.0000UPC:
690310035207Technical Details
Specifications
Max Input HP @1750: | 5 |
Output RPM @1750: | 29 |
Reduction Ratio: | 60:1 |
Torque (lb-in)@1750rpm: | 9808 |
Overhung Load (lbs.): | 3538 |
Shaft Center Distance: | 6.0 |
Shaft Center Height: | 6.50 |
Mount Footprint: | 6.38" x 12.75" |
NEMA Input Mounting: | Solid Shaft |
Mount Style: | H |
Documentation
Additional Information

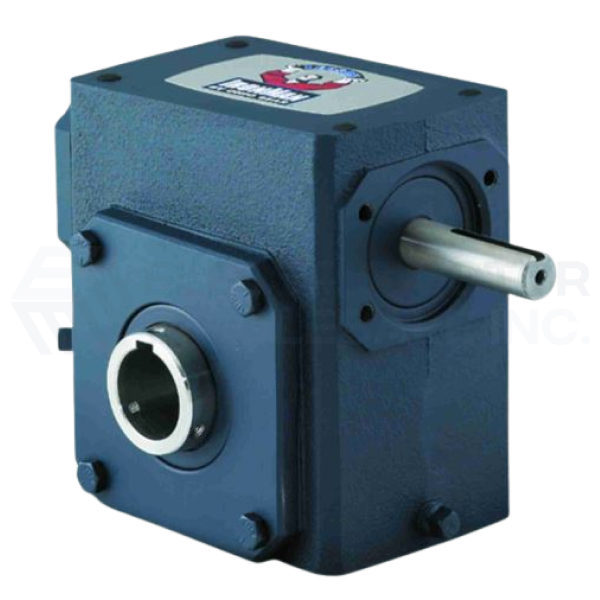

Grove Cast Iron Right Angle Worm Gear Reducer is designed for a wide variety of applications requiring slow speed and high torque, ideal for conveyors, material handling, textile machines, packaging machinery, etc.
FEATURES:
- Heavy duty cast iron housing
- Factory-filled premium Mobil Glygoyle 460 polyalkalene lubricant
- Precision machined mounting surfaces
- O-rings on input and output covers
- Viton double lip seals provide extended life
- Bronze worm gear chill cast from high quality bronze
- Tapered roller bearings
- Premium Grade 5 assembly bolts throughout
- Mounting dimensions are interchangeable with most industry standard reducers
