3HP BROOK CROMPTON 1200RPM 112M B3 230/460V 3PH IEC MOTOR BC6M003-4

3HP BROOK CROMPTON 1200RPM 112M B3 230/460V 3PH IEC MOTOR BC6M003-4

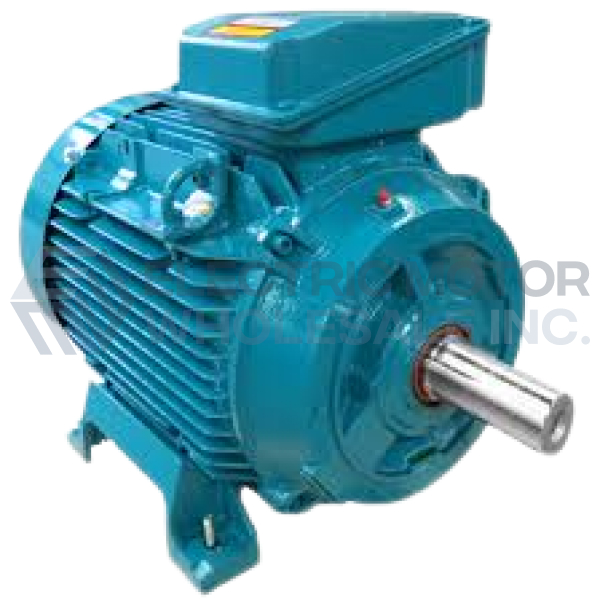

Cast Iron.jpg
Picture is for reference only.

Part Number:

BC6M003-4

Manufacturer:

Brook Crompton

Manufacturer Part Number:

BC6M003-4
BC6M003-4 BROOK CROMPTON 3HP Cast Iron Premium Efficient Metric Motor is used in a diverse range of applications from food and drink to water and sewage, from heating and ventilation to refrigeration.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

149 lbs

Dimensions:

16 x 20 x 16 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Brook Crompton

Application:

General Purpose

Output HP:

3

Output KW:

2.2

Output RPM:

1200//1000

Frame Size IEC:

112M

Mount IEC:

B3 Foot Mount

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

IEC Shaft Dia.:

28mm

Product Packet

APPLICATIONS: Used in a diverse range of applications from food and drink to water and sewage, from heating and ventilation to refrigeration.

  • Removable base
  • NEMA MG1-PART 31 Inverter Duty
  • VPI Impregnation Tropicalized
  • Class F insulation
  • Split conduit box is 90 degrees rotatable
  • Warranty: 3 Years
  • CSA approved for Class I; Division 2
