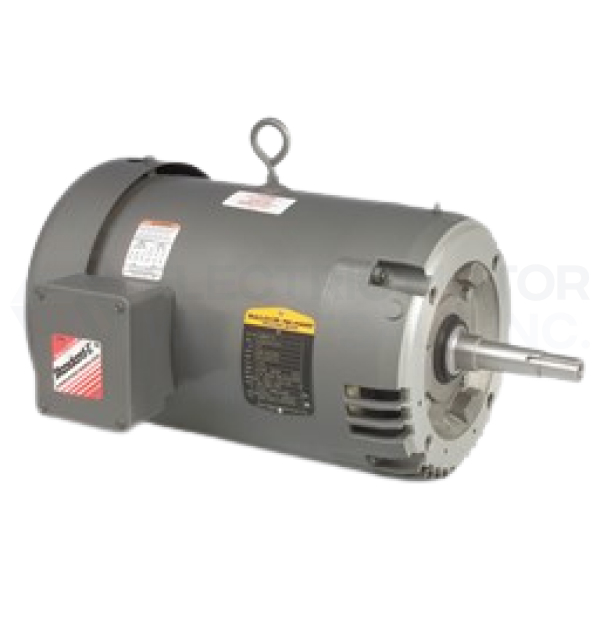

5HP BALDOR 3450RPM 182JM ODP 3PH SUPER-E PUMP MOTOR VEJMM3212T

5HP BALDOR 3450RPM 182JM ODP 3PH SUPER-E PUMP MOTOR VEJMM3212T


Part Number:

VEJMM3212T

Model/Spec Number:

36Q302S040G1

Manufacturer:

ABB/Baldor
VEJMM3212T BALDOR 5HP Three Phase Close-Coupled Pump Electric Motor is for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.
MSRP: $1,729.00

Regular Price

USD

$

1,242

57

QTY
Login to View Discounts

Free No Rush Shipping

Weight:

64 lbs

Dimensions:

18 x 26 x 20 inches

HS Code:

8501524000

UPC:

781568368794

Technical Details

Brand:

Baldor

Application:

Closed Coupled

Output HP:

5

Output KW:

3.7

Output RPM:

3450

Frame Size NEMA:

182JM

Mount NEMA:

C Face No Base

Enclosure NEMA:

ODP

Enclosure IEC:

IP23

Voltage:

230/460//190/380

VEJMM3212T-InfoPacket

APPLICATIONS: Designed for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.

FEATURES:

  • Super-E Premium Efficient Motor
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Three year warranty
