CFW300A04P2S1NB20 WEG 1HP CFW300 IP20 VFD 115VAC 1PH INPUT 13059268

1HP WEG CFW300 SERIES IP20 VFD 115VAC 1PH INPUT CFW300A04P2S1NB20

Part Number:

CFW300A04P2S1NB20

Model/Spec Number:

13059268

Manufacturer:

Weg Obsolete

CFW300A04P2S1NB20 WEG 1HP CFW300 variable speed drive is a high-performance VSD for three-phase induction motors, ideal for applications on machines or equipment that require precise control and easy operation.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

4 lbs

Dimensions:

9 x 12 x 13 inches

HS Code:

8504.40.4000

UPC:

7909265260842

Technical Details

Specifications

Series:	CFW300
Output HP:	1
Output KW:	0.75
Input Voltage:	110-127
Input Phase:	1
Hz Rating:	60//50
Output Voltage:	230
Output Phase:	3
Output Amperage:	4.2
Enclosure IP:	IP20

Documentation

Product Information Packet

CFW300 Brochure

CFW300 Quick Install Guide

Additional Information

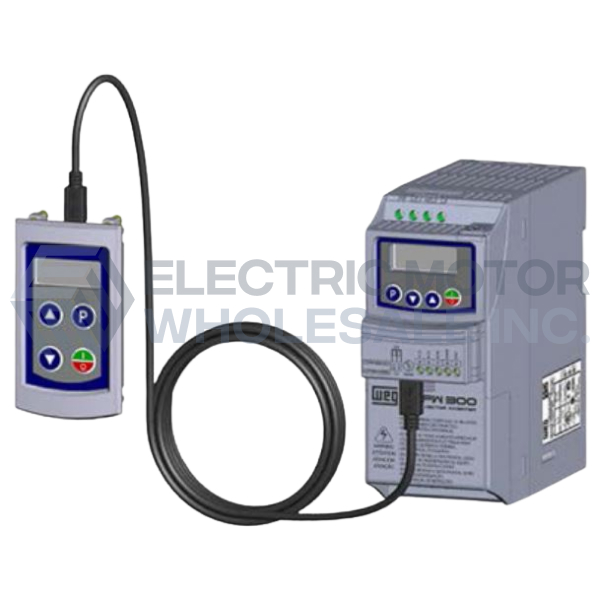

WEG CFW300 variable speed drive is a high-performance VSD for three-phase induction motors. Ideal for applications on machines or equipment that require precise control and easy operation. It features compact size, contactor-style electrical installation, selectable WEG vector control (VVW) or scalar control (V/F), built-in operating interface (HMI), SoftPLC, free WPS programming software and plug-in accessories that may be added to provide extended functionalities, making it a flexible solution of excellent cost effectiveness.

CFW300 replaces direct online starters or star-delta starters:

Electric energy savings
Precise speed control
Protection and improved lifetime for the electric motor
Diagnosis and fault log
Easy to use and install

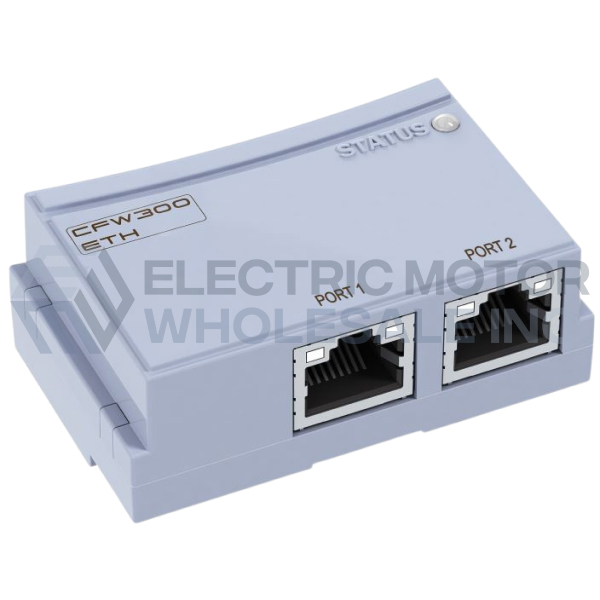

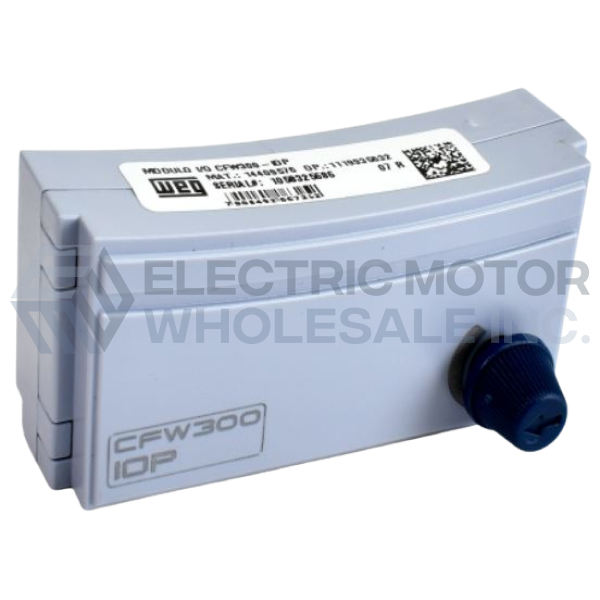

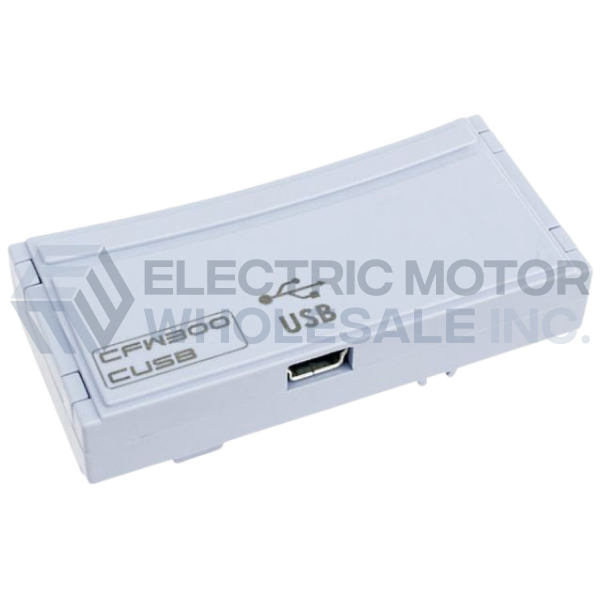

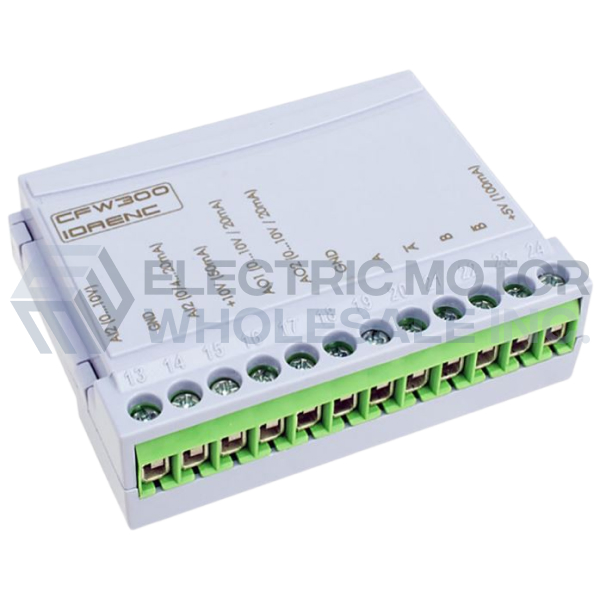

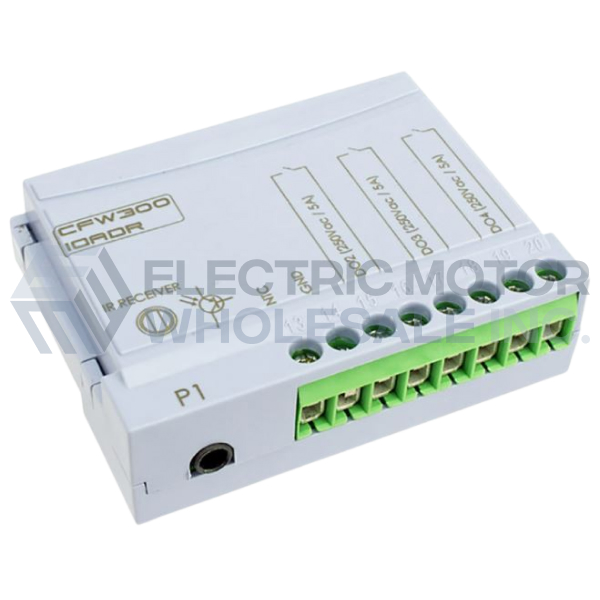

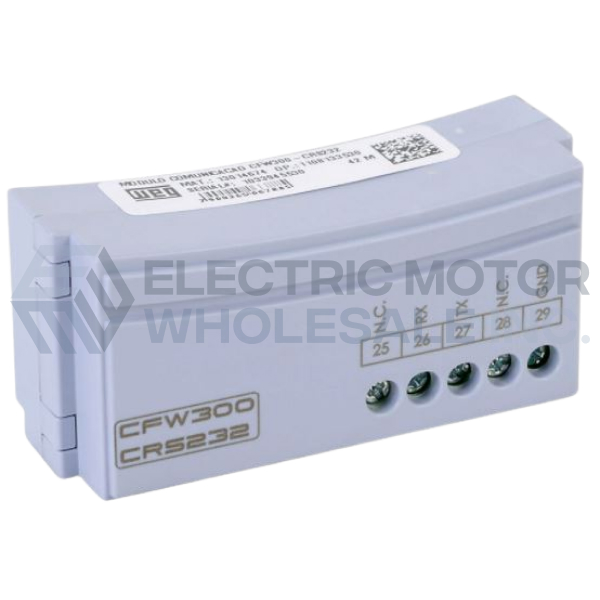

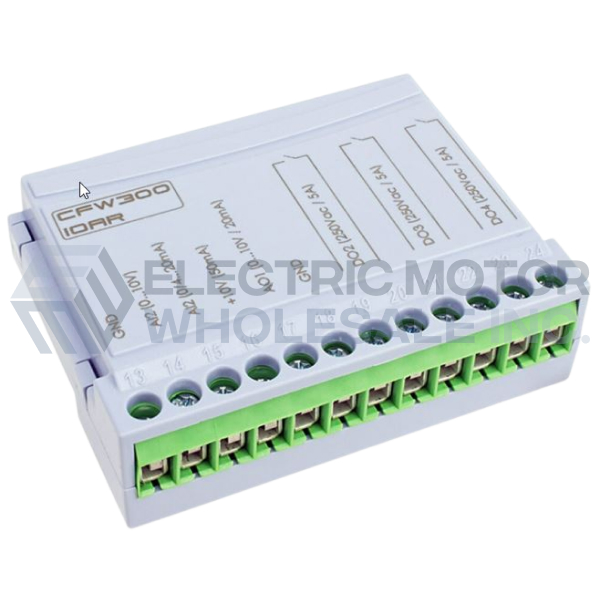

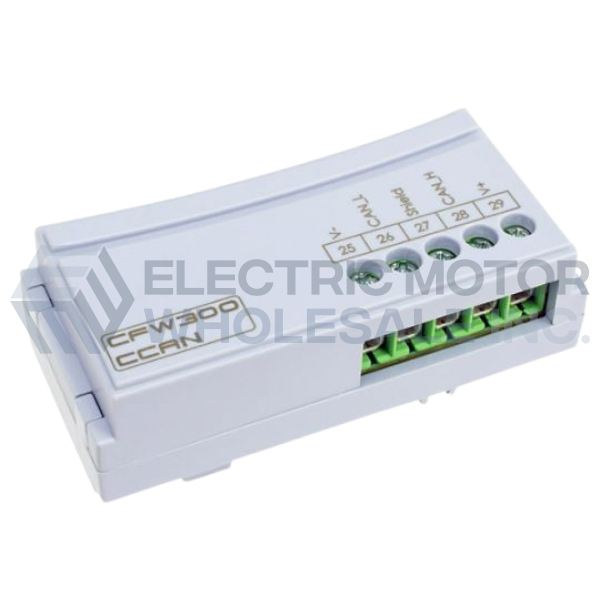

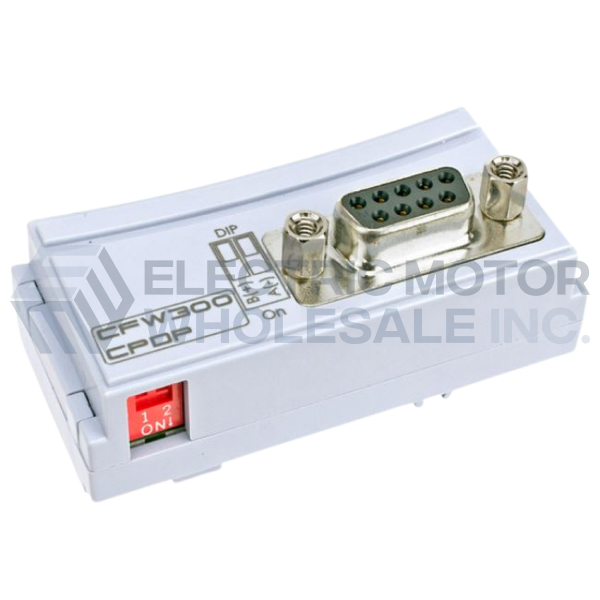

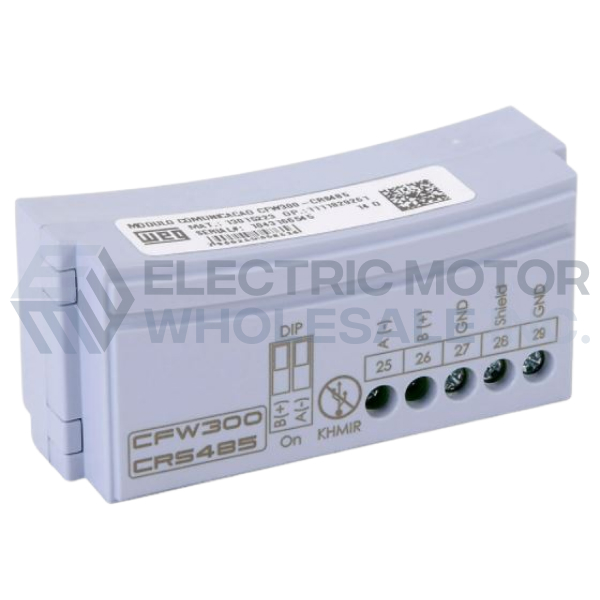

Flexible, allowing the installation of accessories for the application (Plug & Play)
