Product Overview

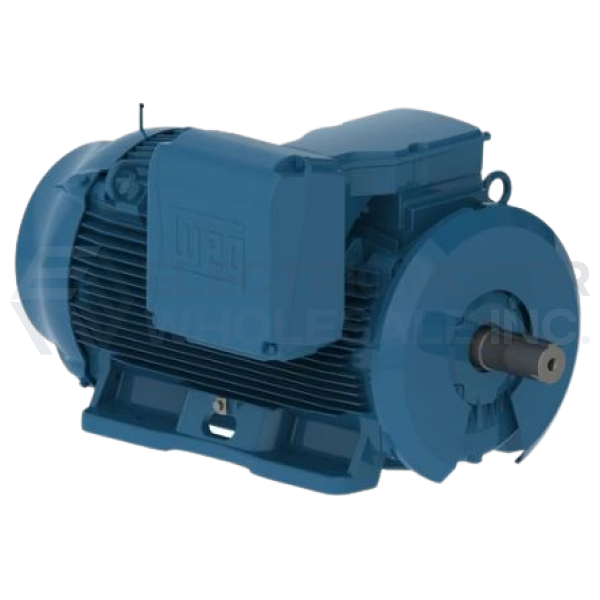

60012ET3G588/9-W22 WEG 600HP Three Phase General Purpose Cast Iron Motor with cast iron frame, flexible mounting, solid feet, and lower noise levels and operating temperatures. The W22 motors are perfectly suitable for a great variety of industrial applications.

Part Number:

60012ET3G588/9-W22

Model/Spec Number:

12011329

Manufacturer:

WEG

Technical Details

Specifications

Brand	WEG
Application	General Purpose
Output HP	600
Output KW	440
Output RPM	1193
Frame Size NEMA	588/9T

Documentation

Product Information Packet

Additional Information

WEG Three Phase General Purpose Cast Iron Motor with cast iron frame, flexible mounting, solid feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Features:

NEMA Premium efficiency rating
Rated for IEEE45 and USCG 259 - Marine Duty
Suitable for VFD operation as per NEMA MG1
- Variable Torque: 1000:1
- Constant Torque: 20:1
Division 2 Explosion Proof Ratings:
- Certified Class 1 Div 2: Groups A, B, C, & D
- Certified Class 2 Div 2: Groups F & G
3 7/8" Keyed output shaft
Class F inverter rated insulation system (impregnation resin and magnet wire are insulation Class H)
Optimized ventilation system for cooler operation and extended life
High Grade FC200 cast iron provides superior mechanical strength and heat dissipation
Exclusive WEG painting system exceeds 200hrs ASTM 117 corrosion test (exceeds IEEE 841 standard)
Balanced to 0.08 inches per second vibration limits (meets IEEE 841 standard)
F1 mounting as standard, F2 convertible
Four bolt conduit cover with glued neoprene gasket
Stainless steel nameplate (laser etched with high contrast background)
Corrosion proof drains
