1/2HP WEG 3495RPM 56J ODP 3PH JET PUMP MOTOR .5036OS3EJP56J-S

1/2HP WEG 3495RPM 56J ODP 3PH JET PUMP MOTOR .5036OS3EJP56J-S

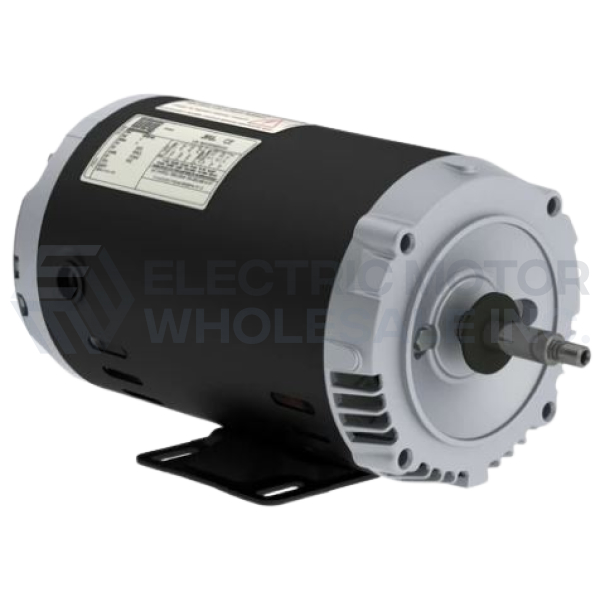

Picture is for reference only.

Part Number:

.5036OS3EJP56J-S

Model/Spec Number:

12659200

Manufacturer:

WEG
.5036OS3EJP56J-S WEG 1/2HP Three Phase Jet Pump Motor has the torque and durability for the toughest commercial applications. Available with or without base and in "J" and "C" configurations.
MSRP: $236.00

Regular Price

USD

$

210

04

QTY
Login to View Discounts

Weight:

22 lbs

Dimensions:

13 x 17 x 13 inches

HS Code:

8501.51.4000

UPC:

7909158494446

Technical Details

Brand:

WEG

Application:

Jet Pump

Output HP:

1/2

Output KW:

0.37

Output RPM:

3495

Frame Size NEMA:

56J

Mount NEMA:

C Face With Base

Enclosure NEMA:

ODP

Voltage:

208-230/460//190-220/380-415

Frequency (Hz):

60//50

Product Information Packet

WEG Three Phase Jet Pump Motors have the torque and durability for the toughest commercial applications. Available with or without base and in “J” and “C” configurations.

Features:

  • 5/8" Threaded output shaft
  • Stainless steel shaft end
  • C-Face mounting provisions with base
  • Insulation Class B
  • NEMA Service Factor
