1/2HP WEG 1725RPM 56 TEFC 3PH EXPLOSION PROOF MOTOR .5018XS3E56
1/2HP WEG 1725RPM 56 TEFC 3PH EXPLOSION PROOF MOTOR .5018XS3E56

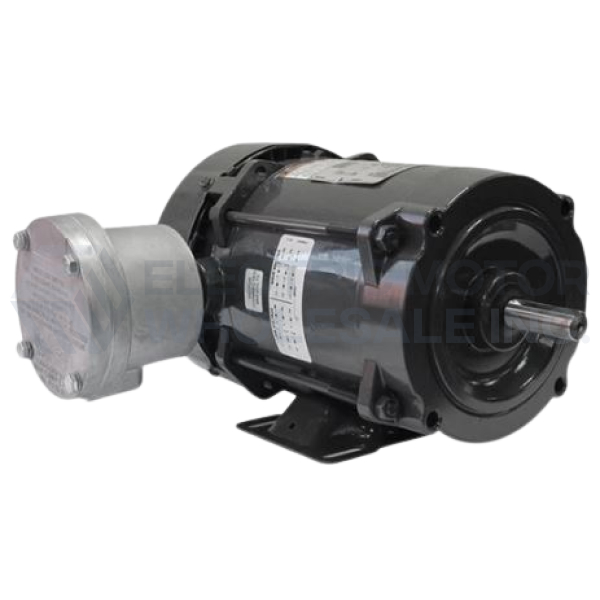

Picture is for reference only.
Part Number:
.5018XS3E56Model/Spec Number:
16554583Manufacturer:
WEGMSRP: $741.00
Regular Price
USD
$
659
49
Shipping Details
Weight:
28 lbsDimensions:
16 x 18 x 14 inchesHS Code:
8501.51.4000UPC:
7909836822714Technical Details
Specifications
Brand: | WEG |
Application: | Explosion Proof |
Output HP: | 1/2 |
Output KW: | 0.37 |
Output RPM: | 1725//1425 |
Frame Size NEMA: | 56 |
Mount NEMA: | With Base |
Enclosure NEMA: | TEFC |
Enclosure IEC: | IP55 |
Voltage: | 208-230/460 |
Additional Information
WEG Three Phase Explosion Proof Motor is suitable for applications requiring certification for hazardous locations.
Features:
- Durable IP55 rated rolled steel enclosure
- Class F insulation
- Automatic Reset Thermal Overload Protector
- Rated 50C Ambient
- 1.0 Service Factor
- Rolled Steel Frame-cannot be modified with T Box on opposite side
- F1 mounted
- Stainless steel nameplate - laser etched with high contrast background
- 24" long leads for remote wiring
- Aluminum endshields
- Unassembled aluminum conduit box included
- Class 1, Division 1, Groups C&D
- Class 2, Division 1, Groups F&G, T3C
- Not rated for VFD
MSRP: $741.00
Regular Price
USD
$
659
49
Shipping Details
Weight:
28 lbsDimensions:
16 x 18 x 14 inchesHS Code:
8501.51.4000UPC:
7909836822714
