Product Overview

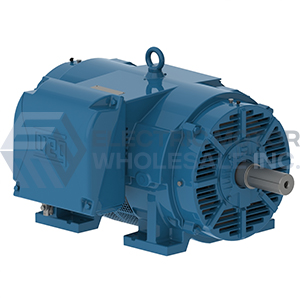

40018OT3G447/9T-W40 WEG 400HP Three Phase General Purpose Cast Iron Motor is designed for environments where dirt and moisture are minimal. The ODP cast iron frame is designed to provide maximum ventilation and heat dissipation, offering low vibration levels, high mechanical stiffness and durability. Widely used in applications such as compressors, pumps and chillers, the ODP motor line meets or exceeds the efficiency levels determined by International Standards and the minimum efficiency level programs in force worldwide.

Part Number:

40018OT3G447/9T-W40

Model/Spec Number:

13621555

Manufacturer:

WEG

Technical Details

Specifications

Brand	WEG
Application	General Purpose
Output HP	400
Output KW	300
Output RPM	1780
Frame Size NEMA	447/9T

Documentation

Product Information Packet

Additional Information

WEG Three Phase General Purpose Cast Iron Motor is designed for environments where dirt and moisture are minimal. The ODP cast iron frame is designed to provide maximum ventilation and heat dissipation, offering low vibration levels, high mechanical stiffness and durability. Widely used in applications such as compressors, pumps and chillers, the ODP motor line meets or exceeds the efficiency levels determined by International Standards and the minimum efficiency level programs in force worldwide.

Features:

NEMA Premium efficiency rating
Suitable for VFD operation as per NEMA MG1
- Variable Torque: 1000:1
- Constant Torque: 2:1
3 3/8" Keyed output shaft
Dual rated 60/50Hz
Frame, end-shields and terminal box are FC 200 cast iron
Class F inverter rated insulation system
Impregnation Resin and Magnet wire are Class H
Class B Rise at 1.15 Service Factor
F1 or F2 mounting convertible
Flying leads for motor connection
Stainless Steel Nameplate - Laser etched with high contrast background
Double shielded ball bearings
Cooling method: IC-01 according to DIN EN 60034-6Z
