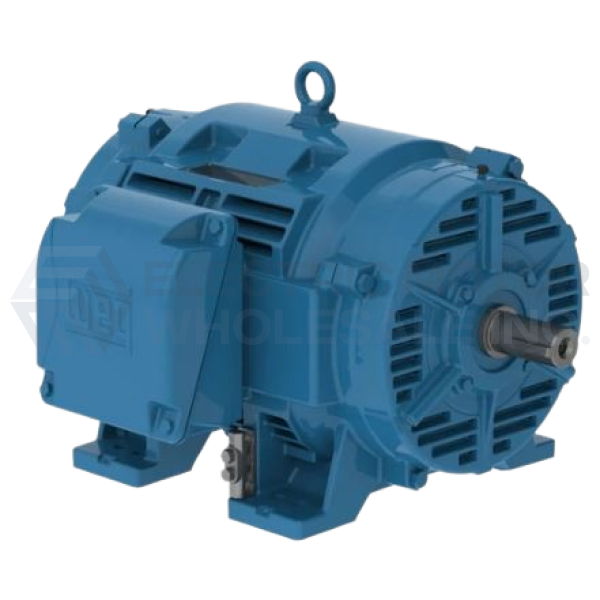

300HP WEG 3563RPM 444/5TS ODP 3PH MOTOR 30036OT3G445TS-W40

WEG Three Phase General Purpose Cast Iron Motor is designed for environments where dirt and moisture are minimal. The ODP cast iron frame is designed to provide maximum ventilation and heat dissipation, offering low vibration levels, high mechanical stiffness and durability. Widely used in applications such as compressors, pumps and chillers, the ODP motor line meets or exceeds the efficiency levels determined by International Standards and the minimum efficiency level programs in force worldwide.

Features:

• NEMA Premium efficiency rating
• Suitable for VFD operation as per NEMA MG1
  • Variable Torque: 1000:1
  • Constant Torque: 2:1
• 2 3/8" Keyed output shaft
• Dual rated 60/50Hz
• Frame, end-shields and terminal box are FC 200 cast iron
• Class F inverter rated insulation system
• Impregnation Resin and Magnet wire are Class H
• Class B Rise at 1.15 Service Factor
• F1 or F2 mounting convertible
• Flying leads for motor connection
• Stainless Steel Nameplate - Laser etched with high contrast background
• Double shielded ball bearings
• Cooling method: IC-01 according to DIN EN 60034-6
