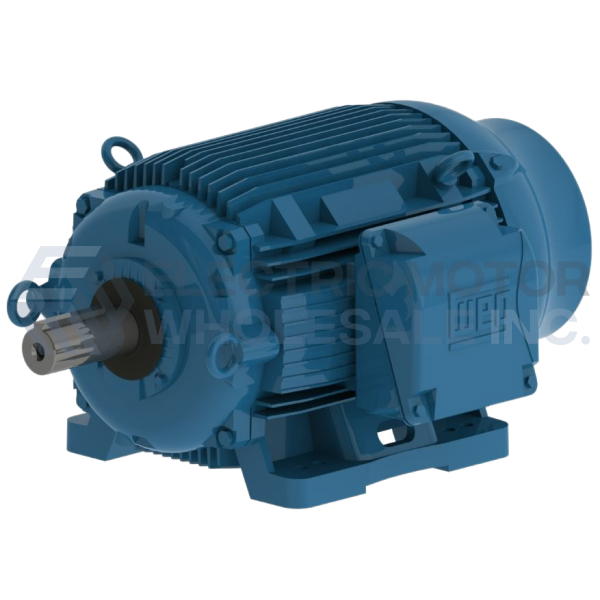

40HP WEG 1780RPM 364/5T 3PH TWO SPEED COOLING TOWER MOTOR 04089EP3PCT364V2-W22
40HP WEG 1780RPM 364/5T 3PH TWO SPEED COOLING TOWER MOTOR 04089EP3PCT364V2-W22
Part Number:
04089EP3PCT364V2-W22Model/Spec Number:
12174886Manufacturer:
WEGFactory lead times may apply for this product. Contact our Sales Team for delivery times.
Regular Price
USD
$
7,760
80
Shipping Details
Weight:
981 lbsDimensions:
33 x 41 x 24 inchesHS Code:
8501.53.0000UPC:
7909018681603Technical Details
Specifications
Brand: | WEG |
Application: | Two Speed |
Output HP: | 40/10 |
Output KW: | 30/7.5 |
Output RPM: | 1780/885 |
Frame Size NEMA: | 364/5T |
Mount NEMA: | With Base |
Enclosure NEMA: | IC411 - TEFC |
Enclosure IEC: | IP55 |
Voltage: | 200 |
Documentation
Additional Information
WEG’s TEFC Cooling Tower Motors are designed for operation in 100% humidity and the most corrosive environments. They are designed to operate in either horizontal or vertical mounting. WEG’s W22 cast iron platform has a superior cooling system and solid feet for cool operation and low vibration and noise extending the life of the motor.
Features:
- Stainless Steel Nameplate - Laser etched with high contrast background
- Double Sealed bearings
- Multiple end-bell drain plugs for shaft up, down or horizontal mounting
- Space Heaters
- Drain plugs in terminal box
- Rubber lead separator between terminal box and frame
- Internally and externally epoxy painted
- Double sealed bearings
- Double impregnation and bake
