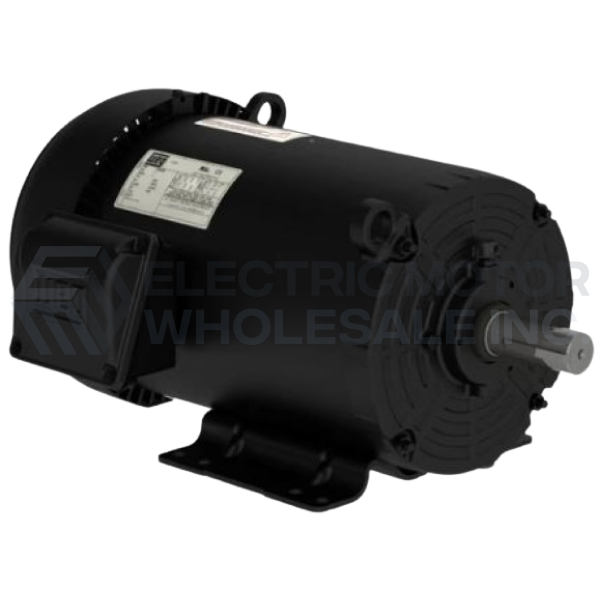

5HP WEG 3500RPM 182/4T TEFC 3PH MOTOR 00536ET3E184T-S

WEG Three Phase General Purpose Rolled Steel Motor is the perfect option for applications that require robustness, low weight and high performance in a single product. These Rolled Steel motors boast good thermal performance and easy installation and maintenance. With steel plate frame and aluminum endshields, these versatile motors provide torque and durability for the even the most severe applications.

Features:

• NEMA Premium efficiency rating
• Suitable for VFD operation as per NEMA MG1
  • Variable Torque: 1000:1
  • Constant Torque: 2:1
• 1 1/8" Keyed output shaft
• Dual rated 60/50Hz (190-220/380-415V @ 50Hz)
• Class F inverter rated insulation system
• Motor frame painting system 500 hours salt spray resistant
• F1 mounting as standard
• New ventilation system for improved thermal performance
• Robust foot design suitable for tougher applications
• Oversized diagonally split aluminum terminal box that exceeds IP55 requirments
• Terminal box rotatable in 90 degrees increments for flexibility during installation
• Color coded leads as standard for easy wiring
• Internal bolts giving a clean surface to the motor for easy cleaning and paint reapplication
• Double shielded ball bearings
