Electric Motors

/

Single Phase Electric Motors

/

WEG Motors Single Phase

/

WEG Single Phase TEFC Rolled Steel Motors

/

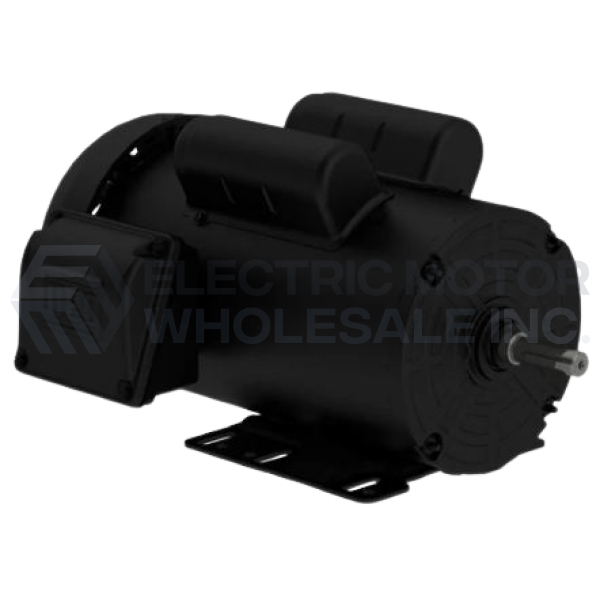

3HP WEG 3490RPM 143/5T TEFC 1PH MOTOR 00336ES1B145T-S

Picture is for reference only.

Part Number:

00336ES1B145T-S

Model/Spec Number:

14103792

Manufacturer:

WEG

00336ES1B145T-S WEG 3HP Single Phase TEFC motor is the perfect option for applications that require robustness, low weight and high performance.

MSRP: $830.00

Regular Price

USD

$

738

70

QTY

Login to View Discounts

Shipping Details

Weight:

55 lbs

Dimensions:

17 x 22 x 15 inches

HS Code:

8501.40.6040

UPC:

7909323557815

Technical Details

Specifications

Application:	General Purpose
Output HP:	3
Output KW:	2.2
Output RPM:	3490
Frame NEMA:	143/5T
Mount NEMA:	Base Mount
Enclosure NEMA:	IC411 - TEFC
Enclosure IEC:	IP55
Voltage:	115/208-230
Frequency (Hz):	60

Documentation

Product Information Packet

Additional Information

WEG Single Phase General Purpose Rolled Steel Motor is the perfect option for applications that require robustness, low weight, and high performance in a single product. These rolled steel motors offer good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well suited for heavy starting loads.

Features:
