STEARNS 87000/87700 Series Rev-B Heavy Duty Friction Disc 566849500

STEARNS 87000/87700 Series Rev-B Heavy Duty Friction Disc 566849500


Part Number:

566849500

Model/Spec Number:

8-004-729-00

Manufacturer:

Stearns Parts

Manufacturer Part Number:

566849500
5-66-8495-00 STEARNS 87000/87700 Series Original Factory Replacement Rev-B Heavy Duty Friction Disc

Technical Details

Stearns Series:

87000/87100/87700

Static Torque Lb.-ft.:

6-105

Coil Size:

#5, #6, #8

Enclosure NEMA:

NEMA2

Enclosure IEC:

IP23

Hub Bore Dia.:

ALL

Coil Hz:

60//50

Release:

ALL

Endplate Material:

Aluminum, Cast Iron

Mount Orientation:

Horizontal/Vertical

87000 Product Packet

Stearns instruction on properly installing the 87000 series support plate.

Stearns YouTube Video: click here to view STEARNS 87000 SERIES Support Plate Factory Reset

Image for STEARNS 87000 Zinc Aluminum Carrier Ring 566587300

STEARNS 87000 Zinc Aluminum Carrier Ring 566587300

MSRP: $1,265.90

Regular Price

$

685

71

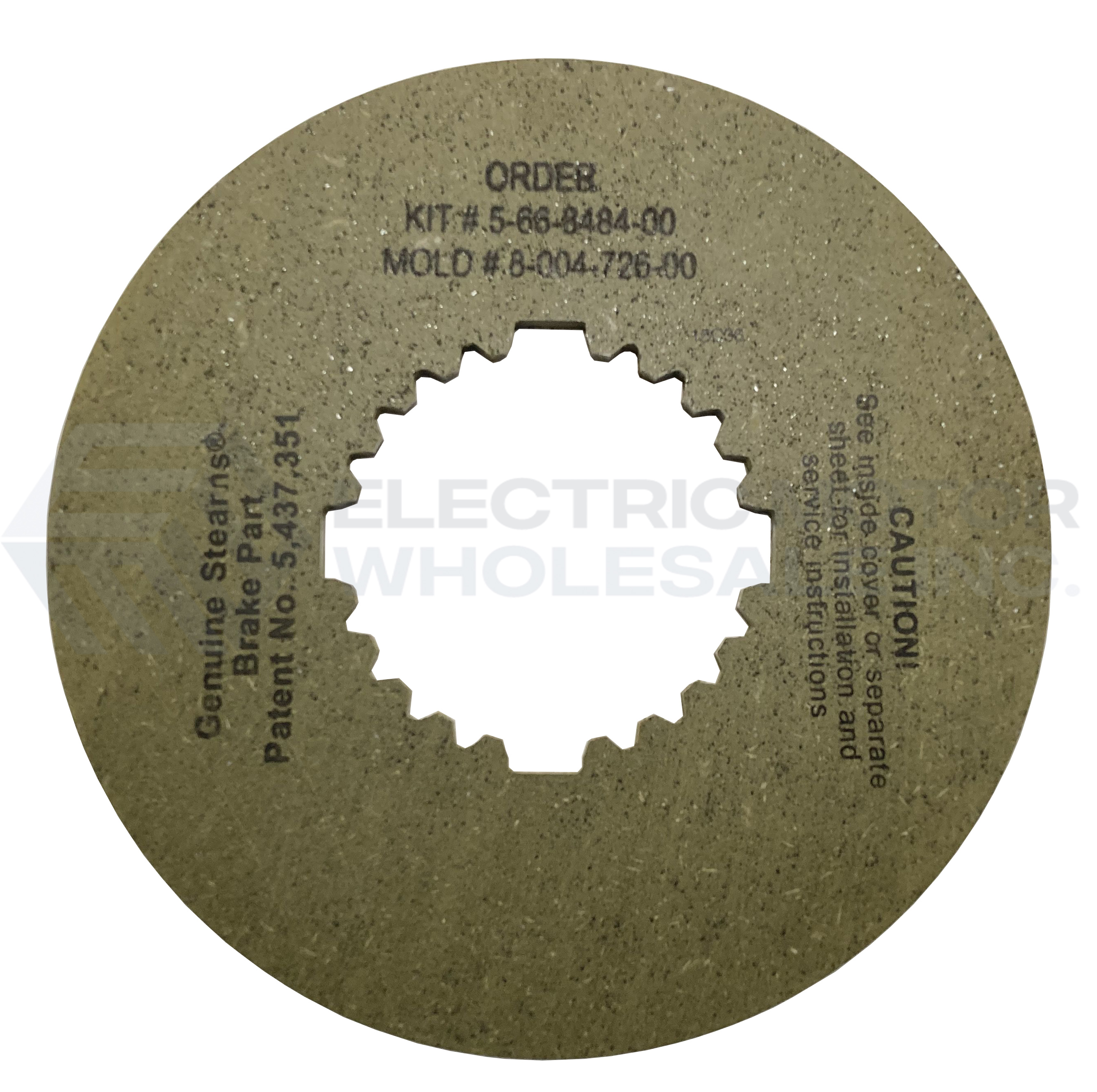

Image for STEARNS 87000 Series High Inertia Friction Disc 566848400
