STEARNS 87700 Series Genuine Replacement Parts

/

#8 STEARNS 87700 SERIES AC SOLENOID KIT 566508200

#8 STEARNS 87700 SERIES AC SOLENOID KIT 566508200

6-8 AC Solenoid.jpg
Picture is for reference only.

Part Number:

566508200

Manufacturer:

Stearns Parts

Manufacturer Part Number:

566508200
5-66-5082-00 STEARNS #8 87700 SERIES AC SOLENOID KIT

Ordering Notes

Non Returnable. STEARNS Products are normally stocked, but 10-15 day lead times may apply. Please do not order expedited shipping without contacting our sales office for stock and availability.

Informational Item

This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.

Weight:

5 lbs

Dimensions:

7 x 7 x 5 inches

HS Code:

6813.89.0050

UPC:

662327211745

Technical Details

Stearns Series:

87700

Static Torque Lb.-ft.:

35, 75, 105

Coil Size:

#8

Enclosure NEMA:

NEMA2-NEMA4X

Enclosure IEC:

IP23, IP54

Coil Voltage AC:

AC ALL

Coil Hz:

60//50

Endplate Material:

Aluminum, Cast Iron

Mount Orientation:

Horizontal/Vertical

Application:

General Purpose

87700 Product Packet

Image for #8 & #9 STEARNS Plastic Plunger Guide (EACH) 808255300

#8 & #9 STEARNS Plastic Plunger Guide (EACH) 808255300

MSRP: $40.11

Regular Price

$

33

22

Image for #8 & #9 STEARNS Bronze Plunger Guide (EACH) 808258100

#8 & #9 STEARNS Bronze Plunger Guide (EACH) 808258100

MSRP: $82.58

Regular Price

$

54

98

Image for #8 STEARNS Injection Molded 115VAC Class-B Coil 566680133

#8 STEARNS Injection Molded 115VAC Class-B Coil 566680133

Image for #8 STEARNS Injection Molded 115/230VAC Class-B Coil 566680733

#8 STEARNS Injection Molded 115/230VAC Class-B Coil 566680733

Image for #8 STEARNS Injection Molded 200VAC Class-B Coil 596682433

#8 STEARNS Injection Molded 200VAC Class-B Coil 596682433

MSRP: $970.00

Regular Price

$

396

00

Image for #8 STEARNS Injection Molded 200/400VAC Class-B Coil 566680833

#8 STEARNS Injection Molded 200/400VAC Class-B Coil 566680833

MSRP: $955.00

Regular Price

$

446

00

Image for #8 STEARNS Injection Molded 230VAC Class-B Coil 566680233

#8 STEARNS Injection Molded 230VAC Class-B Coil 566680233

MSRP: $655.00

Regular Price

$

239

00

Image for #8 STEARNS Injection Molded 230/460VAC Class-B Coil 566680933

#8 STEARNS Injection Molded 230/460VAC Class-B Coil 566680933

MSRP: $966.00

Regular Price

$

418

00

Image for #8 STEARNS Injection Molded 460VAC Class-B Coil 566680433

#8 STEARNS Injection Molded 460VAC Class-B Coil 566680433

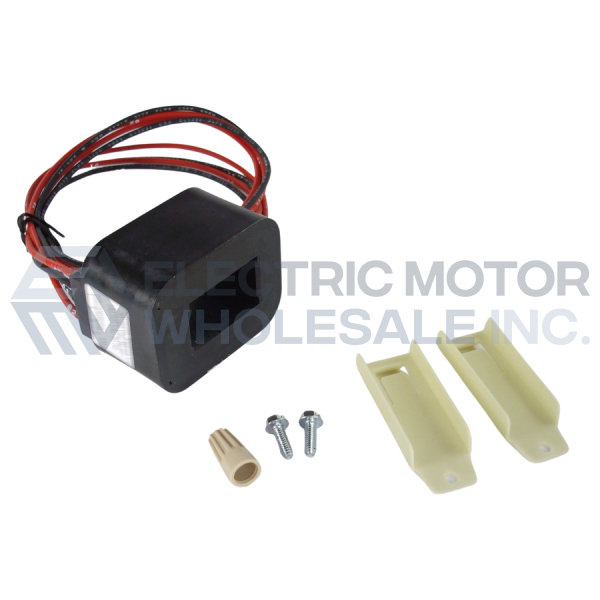

Image for #8 STEARNS Injection Molded 575VAC Class-B Coil 566680533

#8 STEARNS Injection Molded 575VAC Class-B Coil 566680533
