50FT-LB STEARNS 87200 Series 115VAC Thru-Shaft Brake 1087252W0-BB

50FT-LB STEARNS 87200 Series 115VAC Thru-Shaft Brake 1087252W0-BB

87200 Foot Mounted Coupler Brake.jpg

Part Number:

1087252W0 BB

Model/Spec Number:

1-087-252-W0-BB

Manufacturer:

Stearns Brakes

Manufacturer Part Number:

1087252W0 BB
1-087-252-W0-BB STEARNS 50FT-LB Mounting Brake Kit are designed for industrial applications with high performance in a compact design.

Ordering Notes

STEARNS Products are normally stocked, but 10-15 day lead times may apply. Please do not order expedited shipping without contacting our sales office for stock and availability.

MSRP: $15,116.70

Regular Price

USD

$

12,950

17

QTY
Login to View Discounts

Weight:

79 lbs

Dimensions:

16 x 14 x 12 inches

HS Code:

8505.20.0000

UPC:

698210027940

Technical Details

Stearns Series:

87200

Static Torque Lb.-ft.:

50

Coil Size:

#6

Enclosure NEMA:

NEMA2

Enclosure IEC:

IP54, IP56

Hub Bore Dia.:

Not Included

Input Frame Size:

Foot Mounted

Coil Voltage AC:

115//95

Coil Hz:

60//50

Release:

Side Release

87200 Product Packet

APPLICATIONS: NEMA2 Foot Mounted Brake

FEATURES:

  • Cast-Iron endplate and housing
  • Bearing supported thru-shaft
  • Self-Adjusting Design
  • Splined Hub
  • Lead Wire Length: 24 inches
  • Maximum Speed: Horizontal 4000 rpm, Vertical 3600RPM Mod Required
  • Coil Insulation: Class H Standard
  • Certified: CSA File LR-6254
  • ABS Type Approval Certified

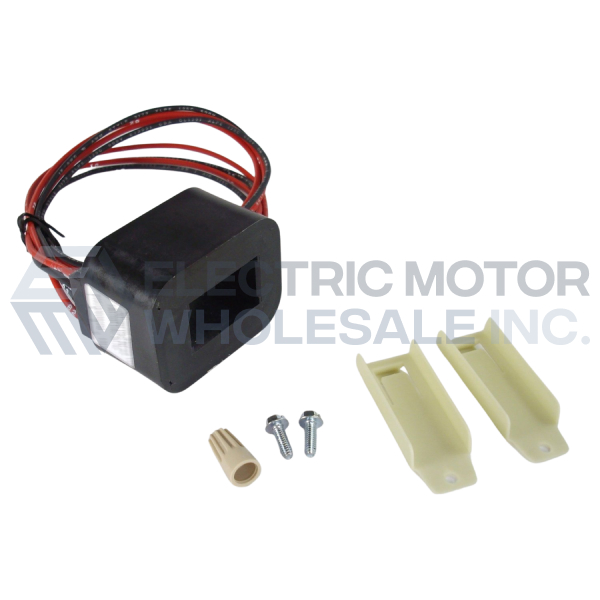

Image for #6 STEARNS Injection Molded 115VAC Class-B Coil 566660133

#6 STEARNS Injection Molded 115VAC Class-B Coil 566660133

Image for STEARNS 87000 Series #6 AC Solenoid Kit 566506100

STEARNS 87000 Series #6 AC Solenoid Kit 566506100

MSRP: $1,265.90

Regular Price

$

685

71

Image for STEARNS 87000/87700 Series Horizontal/Vertical Stationary Disc 566837200

STEARNS 87000/87700 Series Horizontal/Vertical Stationary Disc 566837200

MSRP: $358.65

Regular Price

$

194

27

Image for STEARNS 87000 Series REV-B 1-Friction Disc 566848300

STEARNS 87000 Series REV-B 1-Friction Disc 566848300

MSRP: $318.54

Regular Price

$

162

00

Image for STEARNS 87000 Series Horizontal-Vertical Pressure Plate 566857100

STEARNS 87000 Series Horizontal-Vertical Pressure Plate 566857100

MSRP: $350.40

Regular Price

$

189

81

Image for 25-50FT-LB STEARNS 87200 Series AC Support Plate 542709505

25-50FT-LB STEARNS 87200 Series AC Support Plate 542709505

MSRP: $3,067.43

Regular Price

$

1,661

57

Image for 50-75FT-LB STEARNS 87200 Series 2 Disc Brake Shaft 803570700

50-75FT-LB STEARNS 87200 Series 2 Disc Brake Shaft 803570700

MSRP: $1,500.68

Regular Price

$

812

89

Image for STEARNS 87200 Series Cast Iron Housing Cover (Side Release) 507703800

STEARNS 87200 Series Cast Iron Housing Cover (Side Release) 507703800

MSRP: $3,439.05

Regular Price

$

1,862

87

Image for STEARNS 87200 Series Cast Iron Floor Stand 803470401

STEARNS 87200 Series Cast Iron Floor Stand 803470401

MSRP: $3,714.13

Regular Price

$

3,208

11

Image for STEARNS 87000/87700 Series Side Release Lever Kit 555700200

STEARNS 87000/87700 Series Side Release Lever Kit 555700200

MSRP: $445.96

Regular Price

$

241

57

Image for STEARNS 87000 Series REV-A NEMA2 Hardware Kit 566100700

STEARNS 87000 Series REV-A NEMA2 Hardware Kit 566100700

MSRP: $245.40

Regular Price

$

132

93
