75FT-LB STEARNS 87000 Series IP54 230/460VAC No Hub Brake 108706400-QF

Product Overview

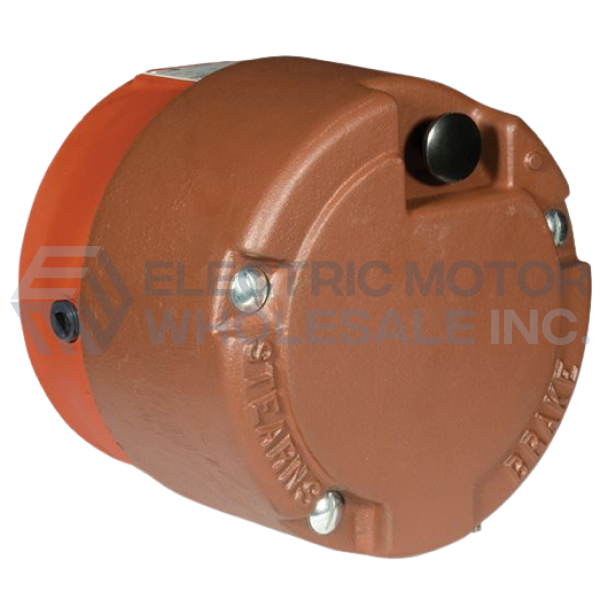

1-087-064-00-QF STEARNS 75FT-LB 87000 Series IP54 Aluminum Mounting Brake "HUB NOT INCLUDED" is designed for industrial applications with high performance in a compact lightweight design.

Part Number:

108706400 QF

Model/Spec Number:

1-087-064-00-QF

Manufacturer:

Stearns Brakes

Manufacturer Part Number:

108706400 QF

Technical Details

Specifications

Stearns Series	87000
Static Torque Lb.-ft.	75
Coil Size	#6
Enclosure NEMA	NEMA4X
Enclosure IEC	IP54
Hub Bore Dia.	No Hub Provided

Documentation

87000 Product Packet

Additional Information

APPLICATIONS: NEMA Motor Mounting Brake

FEATURES:

Die cast aluminum endplate with stamped steel housing
Self-Adjusting Design
Hub Not Included
Lead Wire Length: 24 inches
Maximum Speed: Horizontal 4000 rpm, Vertical 3600RPM Mod Required
Coil Insulation: Class H Standard
Certified: CSA File LR-6254
ABS Type Approval Certified
