50FT-LB STEARNS 87000 Series NEMA4X IP54 Cast Iron Washdown 575VAC Brake 1087052B0LNF

50FT-LB STEARNS 87000 Series NEMA4X IP54 Cast Iron Washdown 575VAC Brake 1087052B0LNF


Part Number:

1087052B0LNF

Model/Spec Number:

1-087-052-B0-LNF

Manufacturer:

Stearns Brakes
1-087-052-B0-LNF STEARNS 50 Ft-LB NEMA4X Cast Iron Washdown Mounting Brake Kit is designed for industrial applications with high performance in a compact lightweight design.

Ordering Notes

STEARNS Products are normally stocked, but 10-25 day lead times may apply. Please do not order expedited shipping without contacting our sales office for stock and availability.

MSRP: $3,208.00

Regular Price

USD

$

2,748

22

QTY
Login to View Discounts

Weight:

53 lbs

Dimensions:

16 x 14 x 12 inches

HS Code:

8505.20.0000

UPC:

793699192414

Technical Details

Stearns Series:

87000

Static Torque Lb.-ft.:

50

Coil Size:

#6

Enclosure NEMA:

NEMA4X

Enclosure IEC:

IP55

Hub Bore Dia.:

L: 1"

Coil Voltage AC:

575//480

Coil Hz:

60//50

Release:

Side Release

Endplate Material:

Cast Iron

87000 Product Packet

Stearns Cast Iron Epoxy Washdown Mounting Brake is designed for industrial applications with high performance in a compact design.

FEATURES:

  • Cast Iron endplate with Cast Iron epoxy washdown housing
  • Self-Adjusting Design
  • Splined Hub
  • Lead Wire Length: 24 inches
  • Maximum Speed: Horizontal 4000 rpm, Vertical 3600RPM Mod Required
  • Coil Insulation: Standard Class H
  • Certified: CSA File LR-6254
  • ABS Type Approval Certified
Image for #6 STEARNS Injection Molded 575VAC Class-H Coil 596660951

#6 STEARNS Injection Molded 575VAC Class-H Coil 596660951

MSRP: $869.40

Regular Price

$

484

00

Image for STEARNS 87000 Series #6 AC Solenoid Kit 566506100

STEARNS 87000 Series #6 AC Solenoid Kit 566506100

MSRP: $1,265.90

Regular Price

$

685

71

Image for STEARNS 87000 Series REV-B 1-Friction Disc 566848300

STEARNS 87000 Series REV-B 1-Friction Disc 566848300

MSRP: $318.54

Regular Price

$

162

00

Image for STEARNS 87000/87700 Series Horizontal/Vertical Stationary Disc 566837200

STEARNS 87000/87700 Series Horizontal/Vertical Stationary Disc 566837200

MSRP: $358.65

Regular Price

$

194

27

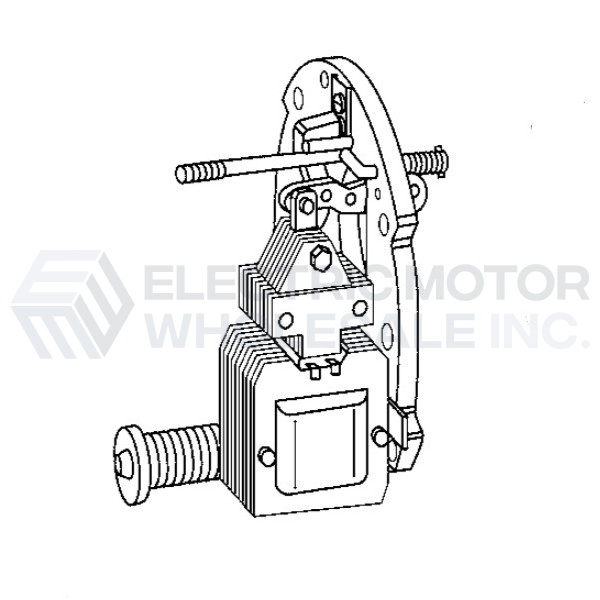

Image for 25, 50FT-LB STEARNS 87000 Series Cast Iron Washdown AC Stainless Support Plate Assembly 54270954006

25, 50FT-LB STEARNS 87000 Series Cast Iron Washdown AC Stainless Support Plate Assembly 54270954006

MSRP: $3,042.65

Regular Price

$

1,648

15

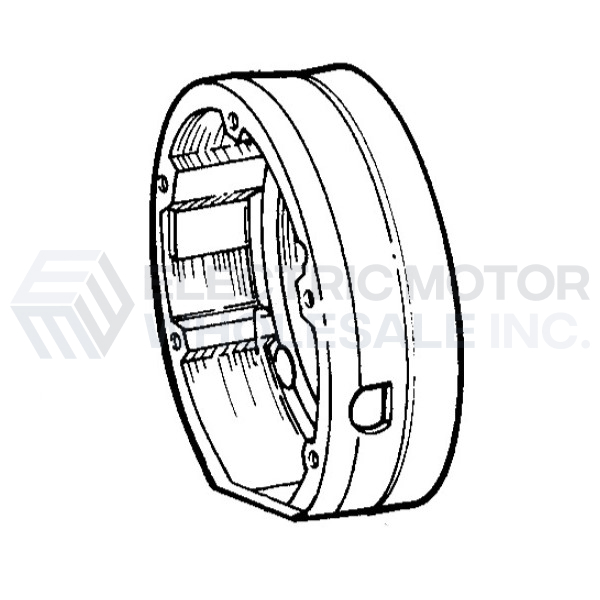

Image for 50-75FT-LB STEARNS 87000 Series IP55 Cast Iron 2 Disc Endplate 80029010330F

50-75FT-LB STEARNS 87000 Series IP55 Cast Iron 2 Disc Endplate 80029010330F

MSRP: $934.38

Regular Price

$

506

13

Image for STEARNS 87000/87100 Series REV-B 2-Disc Hub 1" Bore 51672020001L

STEARNS 87000/87100 Series REV-B 2-Disc Hub 1" Bore 51672020001L

MSRP: $416.46

Regular Price

$

225

59

Image for STEARNS 87000 Series Cast Iron NEMA4X Epoxy Housing Cover (Side Release) 507703604

STEARNS 87000 Series Cast Iron NEMA4X Epoxy Housing Cover (Side Release) 507703604

MSRP: $1,701.24

Regular Price

$

921

53
