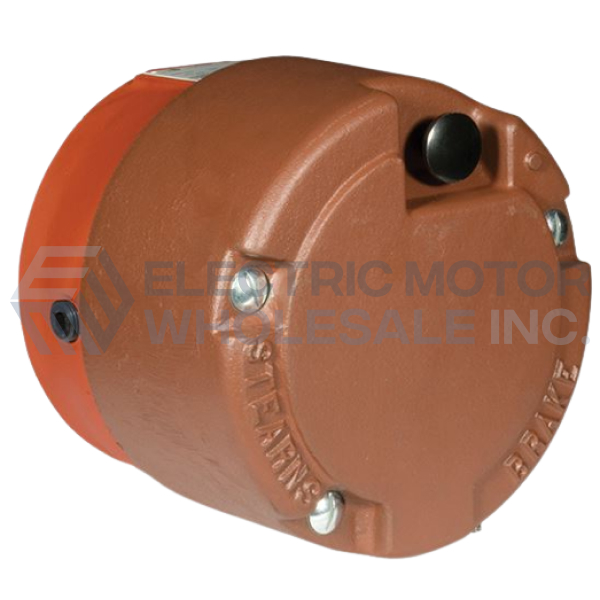

35FT-LB STEARNS 87000 Series IP54 575VAC No Hub Brake 108704400-NF

35FT-LB STEARNS 87000 Series IP54 575VAC No Hub Brake 108704400-NF


Part Number:

108704400 NF

Model/Spec Number:

1-087-044-00-NF

Manufacturer:

Stearns Brakes

Manufacturer Part Number:

108704400 NF
1-087-044-00-NF STEARNS 35FT-LB 87000 Series IP54 Aluminum Mounting Brake "HUB NOT INCLUDED" is designed for industrial applications with high performance in a compact lightweight design.

Ordering Notes

STEARNS Products are normally stocked, but 20-35 day lead times may apply. Please do not order expedited shipping without contacting our sales office for stock and availability.

MSRP: $1,690.80

Regular Price

USD

$

1,448

48

QTY
Login to View Discounts

Weight:

20 lbs

Dimensions:

16 x 14 x 12 inches

HS Code:

8505200000

UPC:

793699131239

Technical Details

Stearns Series:

87000

Static Torque Lb.-ft.:

35

Coil Size:

#8

Enclosure NEMA:

NEMA4X

Enclosure IEC:

IP54

Hub Bore Dia.:

No Hub Provided

Coil Voltage AC:

575//480

Coil Hz:

60//50

Release:

Pull Release

Endplate Material:

Aluminum

87000 Product Packet

APPLICATIONS: NEMA Motor Mounting Brake

FEATURES:

  • Die cast aluminum endplate with stamped steel housing
  • Self-Adjusting Design
  • Hub Not Included
  • Lead Wire Length: 24 inches
  • Maximum Speed: Horizontal 4000 rpm, Vertical 3600RPM Mod Required
  • Coil Insulation: Class H Standard
  • Certified: CSA File LR-6254
  • ABS Type Approval Certified
Image for 35FT-LB STEARNS 87000 Series IP54 575VAC Brake 108704400ENF

35FT-LB STEARNS 87000 Series IP54 575VAC Brake 108704400ENF

MSRP: $1,729.73

Regular Price

$

1,481

83

Image for 35FT-LB STEARNS 87000 Series IP54 575VAC Brake 108704400GNF

35FT-LB STEARNS 87000 Series IP54 575VAC Brake 108704400GNF

MSRP: $1,746.25

Regular Price

$

1,495

97

Image for STEARNS 87000/87100 Series REV-B 1-Disc Hub 5/8" Bore 51672010001B

STEARNS 87000/87100 Series REV-B 1-Disc Hub 5/8" Bore 51672010001B

MSRP: $310.29

Regular Price

$

168

08

Image for STEARNS 87000/87100 Series REV-B 1-Disc Hub 3/4" Bore 51672010001C

STEARNS 87000/87100 Series REV-B 1-Disc Hub 3/4" Bore 51672010001C

MSRP: $339.78

Regular Price

$

184

05

Image for STEARNS 87000/87100 Series REV-B 1-Disc Hub 7/8" Bore 51672010001D

STEARNS 87000/87100 Series REV-B 1-Disc Hub 7/8" Bore 51672010001D

MSRP: $310.29

Regular Price

$

148

00

Image for STEARNS 87000/87100 Series REV-B 1-Disc Hub 1-1/8" Bore 51672010001E

STEARNS 87000/87100 Series REV-B 1-Disc Hub 1-1/8" Bore 51672010001E

MSRP: $310.29

Regular Price

$

148

00

Image for STEARNS 87000/87100 Series REV-B 1-Disc Hub 1-1/4" Bore 51672010001F

STEARNS 87000/87100 Series REV-B 1-Disc Hub 1-1/4" Bore 51672010001F

MSRP: $310.29

Regular Price

$

168

08

Image for STEARNS 87000/87100 Series REV-B 1-Disc Hub 1-3/8" Bore 51672010001G

STEARNS 87000/87100 Series REV-B 1-Disc Hub 1-3/8" Bore 51672010001G

MSRP: $310.29

Regular Price

$

168

08

Image for STEARNS 87000/87100 Series REV-B 1-Disc Hub 1-5/8" Bore 51672010001H

STEARNS 87000/87100 Series REV-B 1-Disc Hub 1-5/8" Bore 51672010001H

MSRP: $339.78

Regular Price

$

184

05

Image for STEARNS 87000/87100 Series REV-B 1-Disc Hub 1-7/8" Bore 51672010001J

STEARNS 87000/87100 Series REV-B 1-Disc Hub 1-7/8" Bore 51672010001J

MSRP: $424.75

Regular Price

$

208

28

Image for STEARNS 87000/87100 Series REV-B 1-Disc Hub 1.0" Bore 51672010001L

STEARNS 87000/87100 Series REV-B 1-Disc Hub 1.0" Bore 51672010001L

MSRP: $625.29

Regular Price

$

338

71

Image for STEARNS 87000/87100 Series REV-B 1-Disc Hub 1-1/2" Bore 51672010001M

STEARNS 87000/87100 Series REV-B 1-Disc Hub 1-1/2" Bore 51672010001M

MSRP: $625.29

Regular Price

$

338

71

Image for STEARNS 87000/87100 Series REV-B 1-Disc Hub 1-1/16" Bore 51672010001P

STEARNS 87000/87100 Series REV-B 1-Disc Hub 1-1/16" Bore 51672010001P

MSRP: $384.60

Regular Price

$

208

33

Image for STEARNS 87000/87100 Series REV-B 1-Disc Hub 1-7/16" Bore 51672010001Q

STEARNS 87000/87100 Series REV-B 1-Disc Hub 1-7/16" Bore 51672010001Q

MSRP: $384.60

Regular Price

$

208

33

Image for STEARNS 87000/87100 Series REV-B 1-Disc Hub 15/16" Bore 51672010001S

STEARNS 87000/87100 Series REV-B 1-Disc Hub 15/16" Bore 51672010001S

MSRP: $417.64

Regular Price

$

226

22

Image for STEARNS 87000/87100 Series REV-B 1-Disc Hub 1-3/16" Bore 51672010001T

STEARNS 87000/87100 Series REV-B 1-Disc Hub 1-3/16" Bore 51672010001T

MSRP: $384.60

Regular Price

$

208

33

Image for STEARNS 87000/87100 Series REV-B 1-Disc Hub .600" Pilot Bore 51672010001Z

STEARNS 87000/87100 Series REV-B 1-Disc Hub .600" Pilot Bore 51672010001Z

Image for #8 STEARNS Injection Molded 575VAC Class-H Coil 596680972

#8 STEARNS Injection Molded 575VAC Class-H Coil 596680972

MSRP: $665.70

Regular Price

$

371

00

Image for STEARNS 87000 Series #8 AC Solenoid Kit 566508100

STEARNS 87000 Series #8 AC Solenoid Kit 566508100

MSRP: $1,629.27

Regular Price

$

882

55

Image for STEARNS 87000 Series REV-B 1-Friction Disc 566848300

STEARNS 87000 Series REV-B 1-Friction Disc 566848300

MSRP: $318.54

Regular Price

$

162

00

Image for STEARNS 87000 Series REV-A Square Hub 1-Friction Disc 566847200

STEARNS 87000 Series REV-A Square Hub 1-Friction Disc 566847200

MSRP: $318.54

Regular Price

$

162

00

Image for STEARNS 87000 Series Zinc Aluminum Carrier Ring 566587400

STEARNS 87000 Series Zinc Aluminum Carrier Ring 566587400

MSRP: $1,355.57

Regular Price

$

734

28

Image for STEARNS 87000/87700 Series Horizontal/Vertical Stationary Disc 566837200

STEARNS 87000/87700 Series Horizontal/Vertical Stationary Disc 566837200

MSRP: $358.65

Regular Price

$

194

27

Image for STEARNS 87000 Series Horizontal-Vertical Pressure Plate 566857100

STEARNS 87000 Series Horizontal-Vertical Pressure Plate 566857100

MSRP: $350.40

Regular Price

$

189

81

Image for 35, 75, 105FT-LB STEARNS 87000/87100 Series AC Support Plate 54270970008

35, 75, 105FT-LB STEARNS 87000/87100 Series AC Support Plate 54270970008

MSRP: $3,096.92

Regular Price

$

1,385

00

Image for STEARNS 87000/87700 Solenoid Lever Pinion 566737100

STEARNS 87000/87700 Solenoid Lever Pinion 566737100

MSRP: $613.48

Regular Price

$

332

32

Image for #8 & #9 STEARNS Plastic Plunger Guide (EACH) 808255300

#8 & #9 STEARNS Plastic Plunger Guide (EACH) 808255300

MSRP: $40.11

Regular Price

$

29

73

Image for STEARNS 87000 Series REV-B NEMA4 Hardware Kit 566100702

STEARNS 87000 Series REV-B NEMA4 Hardware Kit 566100702

MSRP: $336.24

Regular Price

$

182

13

Image for 6-35FT-LB STEARNS 87000 Series IP54 Endplate 52270660030F

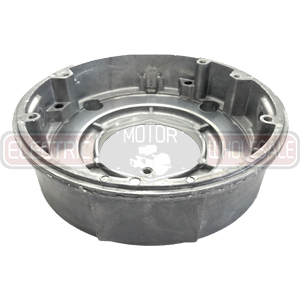

6-35FT-LB STEARNS 87000 Series IP54 Endplate 52270660030F

MSRP: $1,713.04

Regular Price

$

710

00

Image for STEARNS 87000/87100 Series IP54 Endplate Seal 902003300

STEARNS 87000/87100 Series IP54 Endplate Seal 902003300

MSRP: $294.95

Regular Price

$

159

77

Image for STEARNS 87000/87100 NEMA4 Gasket & Seal KIt 566127101

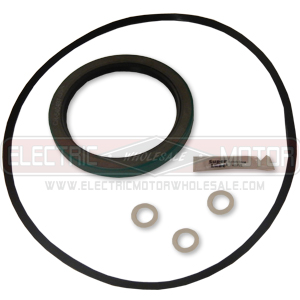

STEARNS 87000/87100 NEMA4 Gasket & Seal KIt 566127101

MSRP: $384.60

Regular Price

$

208

33

Image for STEARNS 87000 Series Steel NEMA4 Housing Cover (Front Pull) 507705700

STEARNS 87000 Series Steel NEMA4 Housing Cover (Front Pull) 507705700

MSRP: $520.29

Regular Price

$

281

83
