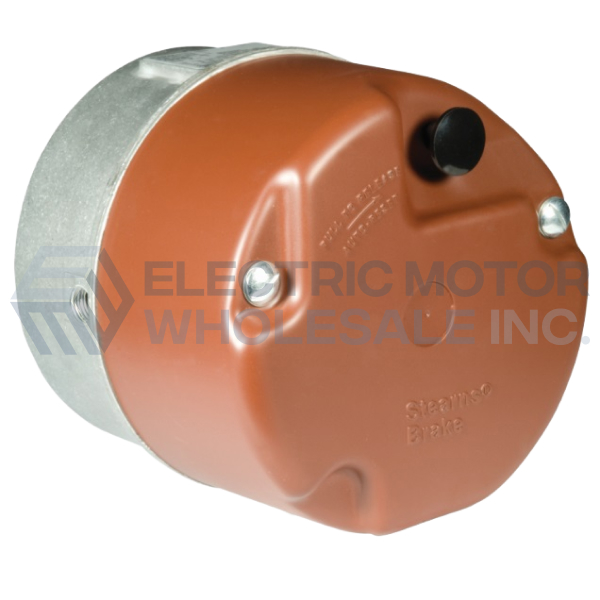

15FT-LB STEARNS 87000 Series NEMA2 230/460VAC No Hub Brake 108702100-QF

15FT-LB STEARNS 87000 Series NEMA2 230/460VAC No Hub Brake 108702100-QF


Part Number:

108702100 QF

Model/Spec Number:

1-087-021-00-QF

Manufacturer:

Stearns Brakes

Manufacturer Part Number:

108702100 QF
1-087-021-00-QF STEARNS 15 Ft-LB NEMA2 230/460VAC Mounting Brake "HUB NOT INCLUDED" is designed for industrial applications with high performance in a compact lightweight design.

Technical Details

Stearns Series:

87000

Static Torque Lb.-ft.:

15

Coil Size:

#6

Enclosure NEMA:

NEMA2

Enclosure IEC:

IP23

Hub Bore Dia.:

Not Included

Coil Voltage AC:

Q: 230/460//190/380VAC

Coil Hz:

60//50

Release:

Pull Release

Endplate Material:

Aluminum

87000 Product Packet

APPLICATIONS: NEMA Motor Mounting Brake

FEATURES:

  • Die cast aluminum endplate with stamped steel housing
  • Self-Adjusting Design
  • Hub Not Included
  • Lead Wire Length: 24 inches
  • Maximum Speed: Horizontal 4000 rpm, Vertical 3600RPM Mod Required
  • Coil Insulation: Class H Standard
  • Certified: CSA File LR-6254
  • ABS Type Approval Certified
Image for 15FT-LB STEARNS 87000 Series NEMA2 230/460VAC Brake 108702100BQF

15FT-LB STEARNS 87000 Series NEMA2 230/460VAC Brake 108702100BQF

MSRP: $1,529.17

Regular Price

$

1,310

01

Image for 15FT-LB STEARNS 87000 Series NEMA2 230/460VAC Brake 108702100CQF

15FT-LB STEARNS 87000 Series NEMA2 230/460VAC Brake 108702100CQF

MSRP: $1,529.17

Regular Price

$

1,310

01

Image for 15FT-LB STEARNS 87000 Series NEMA2 230/460VAC Brake 108702100DQF

15FT-LB STEARNS 87000 Series NEMA2 230/460VAC Brake 108702100DQF

MSRP: $1,220.07

Regular Price

$

1,045

21

Image for 15FT-LB STEARNS 87000 Series NEMA2 230/460VAC Brake 108702100EQF

15FT-LB STEARNS 87000 Series NEMA2 230/460VAC Brake 108702100EQF

MSRP: $1,220.07

Regular Price

$

1,045

21

Image for 15FT-LB STEARNS 87000 Series NEMA2 230/460VAC Brake 108702100FQF

15FT-LB STEARNS 87000 Series NEMA2 230/460VAC Brake 108702100FQF

MSRP: $1,208.27

Regular Price

$

1,035

11

Image for 15FT-LB STEARNS 87000 Series NEMA2 230/460VAC Brake 108702100GQF

15FT-LB STEARNS 87000 Series NEMA2 230/460VAC Brake 108702100GQF

MSRP: $1,334.51

Regular Price

$

1,143

24

Image for 15FT-LB STEARNS 87000 Series NEMA2 230/460VAC Brake 108702100HQF

15FT-LB STEARNS 87000 Series NEMA2 230/460VAC Brake 108702100HQF

MSRP: $1,334.51

Regular Price

$

1,143

24

Image for 15FT-LB STEARNS 87000 Series NEMA2 230/460VAC Brake 108702100LQF

15FT-LB STEARNS 87000 Series NEMA2 230/460VAC Brake 108702100LQF

MSRP: $1,515.02

Regular Price

$

1,297

88

Image for 15FT-LB STEARNS 87000 Series NEMA2 230/460VAC Brake 108702100MQF

15FT-LB STEARNS 87000 Series NEMA2 230/460VAC Brake 108702100MQF

MSRP: $1,529.17

Regular Price

$

1,310

01

Image for 15FT-LB STEARNS 87000 Series NEMA2 230/460VAC Brake 108702100ZQF

15FT-LB STEARNS 87000 Series NEMA2 230/460VAC Brake 108702100ZQF

MSRP: $1,220.07

Regular Price

$

1,045

21

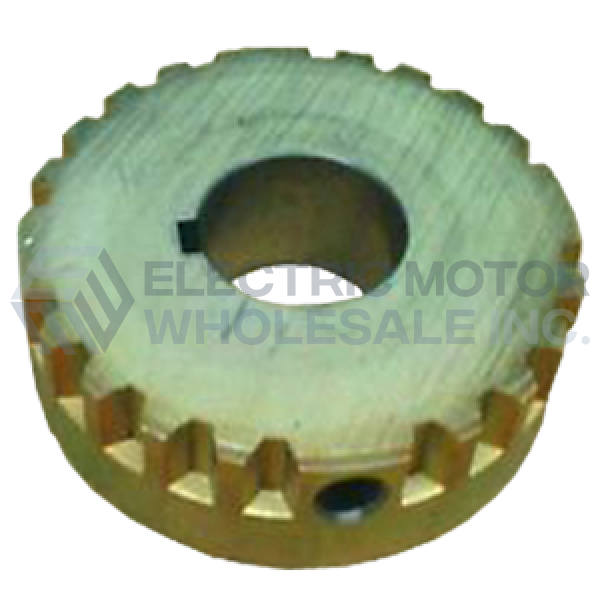

Image for STEARNS 87000/87100 Series REV-B 1-Disc Hub 5/8" Bore 51672010001B
