Stearns Brakes

/

Stearns Discontinued Products

/

10FT-LB STEARNS 87000 Series NEMA2 230/460VAC Brake 1087011H0BQF

10FT-LB STEARNS 87000 Series NEMA2 230/460VAC Brake 1087011H0BQF

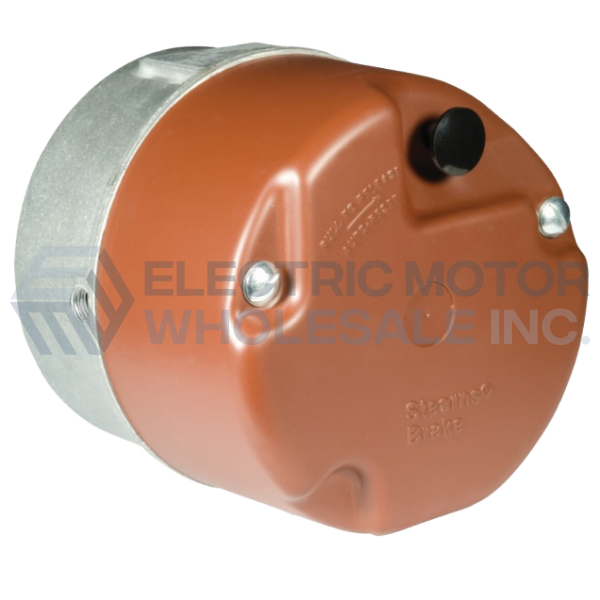

87000-IP23 Brake.jpg
Picture is for reference only.

Part Number:

1087011H0BQF

Model/Spec Number:

1-087-011-H0-BQF

Manufacturer:

Stearns Obsolete
1-087-011-H0-BQF STEARNS 10 Ft-LB NEMA2 Mounting Brake is designed for industrial applications with high performance in a compact lightweight design.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

24 lbs

Dimensions:

16 x 14 x 12 inches

HS Code:

8505.20.0000

UPC:

662327980757

Technical Details

Stearns Series:

87000

Static Torque Lb.-ft.:

10

Coil Size:

#4

Enclosure NEMA:

NEMA2

Enclosure IEC:

IP23

Hub Bore Dia.:

B: 5/8"

Coil Voltage AC:

230/460//190/380

Coil Hz:

60//50

Release:

Pull Release

Endplate Material:

Aluminum

87000 Product Packet

APPLICATIONS: NEMA Motor Mounting Brake

FEATURES:

  • Die cast aluminum endplate with stamped steel housing
  • Self-Adjusting Design
  • Lead Wire Length: 24 inches
  • Maximum Speed: Horizontal 4000 rpm, Vertical 3600RPM Mod Required
  • Coil Insulation: Class H Standard
  • Certified: CSA File LR-6254
  • ABS Type Approval Certified
