6FT-LB STEARNS 87000 Series NEMA2 132VAC Brake 1087001H0DDF

6FT-LB STEARNS 87000 Series NEMA2 132VAC Brake 1087001H0DDF

87000-IP23 Brake.jpg
Picture is for reference only.

Part Number:

1087001H0DDF

Model/Spec Number:

1-087-001-H0-DDF

Manufacturer:

Stearns Obsolete
1-087-001-H0-DDF STEARNS 6 Ft-LB NEMA2 Mounting Brake is designed for industrial applications with high performance in a compact lightweight design.

Item Discontinued

Click below to request an agent review potential options.

Weight:

22 lbs

Dimensions:

16 x 14 x 12 inches

HS Code:

8505.20.0000

UPC:

793699273199

Technical Details

Stearns Series:

87000

Static Torque Lb.-ft.:

6

Coil Size:

#5

Enclosure NEMA:

NEMA2

Enclosure IEC:

IP23

Hub Bore Dia.:

D: 7/8"

Coil Voltage AC:

132//110

Coil Hz:

60//50

Release:

Pull Release

Endplate Material:

Aluminum

87000 Product Packet

APPLICATIONS: NEMA Motor Mounting Brake

FEATURES:

  • Die cast aluminum endplate with stamped steel housing
  • Self-Adjusting Design
  • Lead Wire Length: 24 inches
  • Maximum Speed: Horizontal 4000 rpm, Vertical 3600RPM Mod Required
  • Coil Insulation: Class H Standard
  • Certified: CSA File LR-6254
  • ABS Type Approval Certified
Image for STEARNS 87000 Series #5 AC Solenoid Kit 566505100

STEARNS 87000 Series #5 AC Solenoid Kit 566505100

MSRP: $972.14

Regular Price

$

554

50

Image for STEARNS 87000 Series REV-B 1-Friction Disc 566848300

STEARNS 87000 Series REV-B 1-Friction Disc 566848300

MSRP: $318.54

Regular Price

$

162

00

Image for STEARNS 87000/87700 Series Horizontal/Vertical Stationary Disc 566837200

STEARNS 87000/87700 Series Horizontal/Vertical Stationary Disc 566837200

MSRP: $358.65

Regular Price

$

204

58

Image for STEARNS 87000 Series Horizontal-Vertical Pressure Plate 566857100

STEARNS 87000 Series Horizontal-Vertical Pressure Plate 566857100

MSRP: $350.40

Regular Price

$

199

86

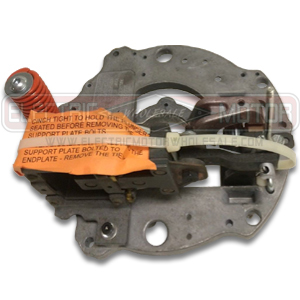

Image for 6FT-LB STEARNS 87000 Series AC Support Plate 54270890005

6FT-LB STEARNS 87000 Series AC Support Plate 54270890005

MSRP: $1,885.29

Regular Price

$

1,075

37

Image for 6-35FT-LB STEARNS 87000 Series IP23 1-Disc Endplate 50270040130F

6-35FT-LB STEARNS 87000 Series IP23 1-Disc Endplate 50270040130F

MSRP: $752.70

Regular Price

$

352

00

Image for STEARNS 87000/87700 Solenoid Lever Pinion 566737100

STEARNS 87000/87700 Solenoid Lever Pinion 566737100

MSRP: $613.48

Regular Price

$

349

93

Image for STEARNS 87000/87100 Series REV-B 1-Disc Hub 7/8" Bore 51672010001D

STEARNS 87000/87100 Series REV-B 1-Disc Hub 7/8" Bore 51672010001D

MSRP: $310.29

Regular Price

$

168

00

Image for STEARNS 87000 Series REV-B NEMA2 Hardware Kit 566100701

STEARNS 87000 Series REV-B NEMA2 Hardware Kit 566100701

MSRP: $245.40

Regular Price

$

139

97
