550FT-LB Stearns 82000 Series NEMA2 230/460VAC Brake 108206102PQF

550FT-LB Stearns 82000 Series NEMA2 230/460VAC Brake 108206102PQF

81-82000 IP23-54 Brake.jpg

Part Number:

108206102PQF

Model/Spec Number:

1-082-061-02-PQF

Manufacturer:

Stearns Brakes
1-082-061-02-PQF STEARNS 550 Ft-LB 230/460VAC Mounting Brake is designed for industrial applications with high performance in a compact lightweight design.

Ordering Notes

STEARNS Products are normally stocked, but a standard 115-125 day lead times may apply. Please do not order expedited shipping without contacting our Sales Team for stock and availability.

Regular Price

USD

$

12,585

32

QTY
Login to View Discounts

Weight:

191 lbs

Dimensions:

34 x 24 x 21 inches

HS Code:

8505.20.0000

UPC:

782935387387

Technical Details

Stearns Series:

82000

Static Torque Lb.-ft.:

550

Coil Size:

#9

Strength:

4

Enclosure NEMA:

NEMA2

Enclosure IEC:

IP23

Hub Bore Dia.:

P: 2-1/4"

Coil Voltage AC:

230/460//190/380

Coil Hz:

60//50

Release:

Pull Release

82000 Product Packet

STEARNS 82000 NEMA2 Motor Mounting Brake

Features:

  • Self-Adjusting Design
  • Spring-Set Electrically Released
  • Coil Insulation: Class-H Standard

Special Quote Options:

  • Crane Carrier discs optional
  • Brass Stat Discs and Pressure Plate
  • Vertical Mount
Image for #9 STEARNS Injection Molded 230/460VAC Class-H Coil 596692981

#9 STEARNS Injection Molded 230/460VAC Class-H Coil 596692981

MSRP: $1,743.00

Regular Price

$

968

00

Image for #9 STEARNS 81000/82000 Series AC Solenoid Assembly 512552900

#9 STEARNS 81000/82000 Series AC Solenoid Assembly 512552900

MSRP: $1,280.78

Regular Price

$

693

78

Image for STEARNS 82000 Series Horizontal-Vertical Friction Disc 566842000

STEARNS 82000 Series Horizontal-Vertical Friction Disc 566842000

MSRP: $633.54

Regular Price

$

343

17

Image for STEARNS 82000 Series Horizontal Cast-Iron Stationary Disc 800320601

STEARNS 82000 Series Horizontal Cast-Iron Stationary Disc 800320601

MSRP: $322.86

Regular Price

$

174

89

Image for STEARNS 82000 Series Horizontal 3&5 Disc Pressure Plate 800520501

STEARNS 82000 Series Horizontal 3&5 Disc Pressure Plate 800520501

MSRP: $942.65

Regular Price

$

510

62

Image for 330-550FT-LB STEARNS 82000 Series AC Support Plate Assembly 54220770042

330-550FT-LB STEARNS 82000 Series AC Support Plate Assembly 54220770042

MSRP: $6,292.99

Regular Price

$

3,408

79

Image for STEARNS 82000/86000 Series RH Solenoid Lever Pinion 566732100

STEARNS 82000/86000 Series RH Solenoid Lever Pinion 566732100

MSRP: $824.67

Regular Price

$

446

70

Image for STEARNS 81000/82000 Series Lever Arm 517200100

STEARNS 81000/82000 Series Lever Arm 517200100

MSRP: $736.19

Regular Price

$

398

78

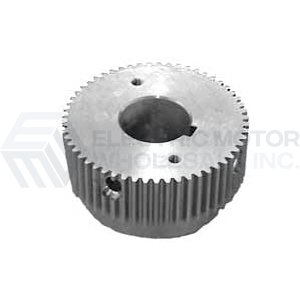

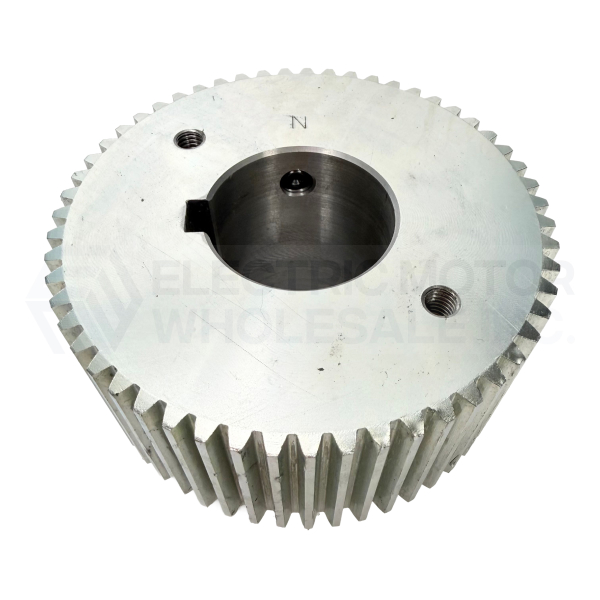

Image for Stearns 82000 Series 5-Disc Hub 2-1/4" Bore 51621040003P

Stearns 82000 Series 5-Disc Hub 2-1/4" Bore 51621040003P

MSRP: $2,963.60

Regular Price

$

1,605

32

Image for STEARNS 82000 Series 440-550FT-LB IP23 Cast Iron Endplate 80022224130F

STEARNS 82000 Series 440-550FT-LB IP23 Cast Iron Endplate 80022224130F

MSRP: $5,291.32

Regular Price

$

2,866

21
