440FT-LB STEARNS 82000 Series IP23 Mounting Brakes W/O Hub

/

440FT-LB Stearns 82000 Series NEMA2 230VAC No-Hub Brake 108205102FF

Picture is for reference only.

Part Number:

108205102 FF

Model/Spec Number:

1-082-051-02-FF

Manufacturer:

Stearns SPO

Manufacturer Part Number:

108205102 FF

1-082-051-02-FF STEARNS 440 Ft-LB 230VAC Mounting Brake "HUB NOT INCLUDED" is designed for industrial applications with high performance in a compact lightweight design.

Ordering Notes

STEARNS Products are normally stocked, but a standard 15-30 day lead times may apply. Please do not order expedited shipping without contacting our Sales Team for stock and availability. Non Returnable.

Informational Item

This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.

Shipping Details

Weight:

200 lbs

Dimensions:

34 x 24 x 21 inches

HS Code:

8505.20.0000

Technical Details

Specifications

Stearns Series:	82000
Static Torque Lb.-ft.:	440
Coil Size:	#9
Strength:	4
Enclosure NEMA:	NEMA2
Enclosure IEC:	IP23
Hub Bore Dia.:	Not Provided
Coil Voltage AC:	230//190
Coil Hz:	60//50
Release:	Pull Release

Documentation

82000 Product Packet

Additional Information

STEARNS NEMA Motor Mounting Brake

Features:

Hub not included
Self-Adjusting Design
Spring-Set Electrically Released
Coil Insulation: Class-H Standard

Special Quote Options:

Crane Carrier discs optional
Brass Stat Discs and Pressure Plate
Vertical Mount

HUBS

Stearns 82000 Series 4-Disc Hub 1-1/8" Bore 51621030003A

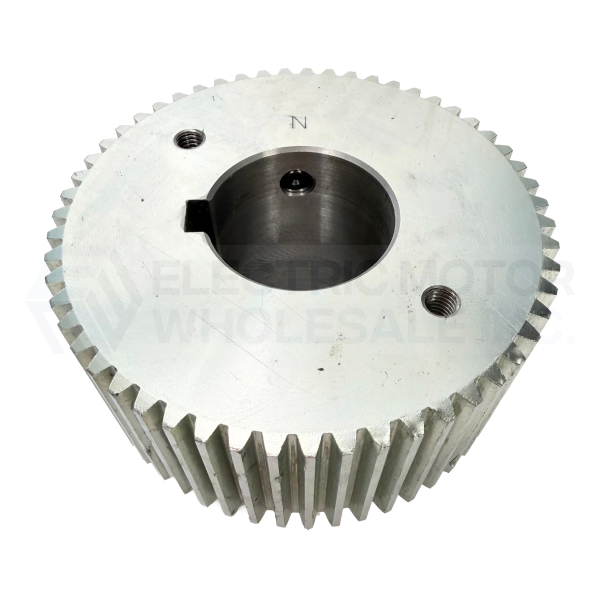

Stearns 82000 Series 4-Disc Hub 1-3/8" Bore 51621030003C

Stearns 82000 Series 4-Disc Hub 1-1/2" Bore 51621030003D

Stearns 82000 Series 4-Disc Hub 1-5/8" Bore 51621030003F

Stearns 82000 Series 4-Disc Hub 1-3/4" Bore 51621030003H

Stearns 82000 Series 4-Disc Hub 1-7/8" Bore 51621030003J

Stearns 82000 Series 4-Disc Hub 2" Bore 51621030003L

Stearns 82000 Series 4-Disc Hub 2-1/8" Bore 51621030003N

Stearns 82000 Series 4-Disc Hub 2-1/4" Bore 5162103000P

Stearns 82000 Series 4-Disc Hub 2-3/8" Bore 51621030003R

Stearns 82000 Series 4-Disc Hub 2-1/2" Bore 51621030003T

Stearns 82000 Series 4-Disc Hub 2-5/8" Bore 51621030003U

Stearns 82000 Series 4-Disc Hub 2-3/4" Bore 51621030003V

Stearns 82000 Series 4-Disc Hub 2-7/8" Bore 51621030003X

Stearns 82000 Series 4-Disc Hub 3" Bore 51621030003Z

Replacement Parts

#9 STEARNS Injection Molded 230VAC Class-H Coil 596692969

#9 STEARNS 81000/82000 Series AC Solenoid Assembly 512552900

STEARNS 82000 Series Horizontal-Vertical Friction Disc 566842000

MSRP: $633.54

Regular Price

$

361

37

STEARNS 82000 Series Steel Carrier Ring Friction Disc 566582100

MSRP: $1,801.53

Regular Price

$

1,027

59

STEARNS 82000 Series Horizontal Cast-Iron Stationary Disc 800320601

STEARNS 82000 Series Horizontal 2&4 Disc Pressure Plate 800520601

MSRP: $1,060.63

Regular Price

$

604

98

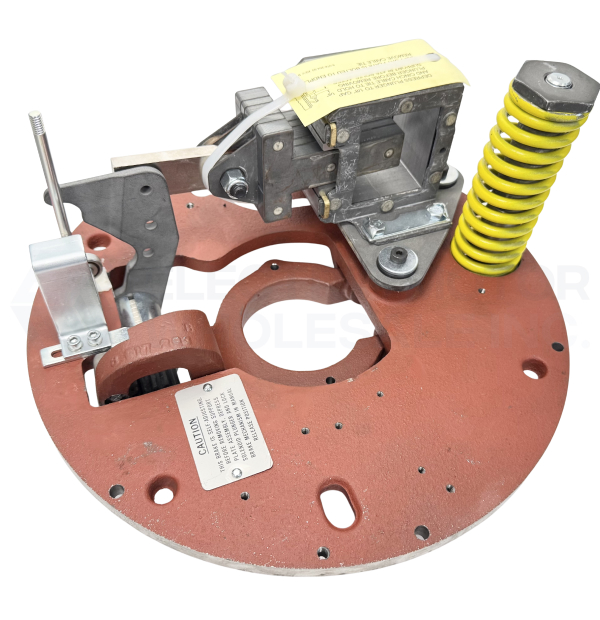

330-550FT-LB STEARNS 82000 Series AC Support Plate Assembly 54220770042

STEARNS 82000/86000 Series RH Solenoid Lever Pinion 566732100

MSRP: $824.67

Regular Price

$

470

39

STEARNS 82000 Series Lever Arm Kit 517200102

STEARNS 82000 Series 440-550FT-LB IP23 Cast Iron Endplate 80022224130F
