25FT-LB Stearns 56700 Series 56C/143-5TC IP54 575VAC Coupler Brake 105676208-NF

25FT-LB Stearns 56700 Series 56C/143-5TC IP54 575VAC Coupler Brake 105676208-NF

56700 Coupler Brake.jpg

Part Number:

105676208 NF

Model/Spec Number:

1-056-762-08-NF

Manufacturer:

Stearns Brakes

Manufacturer Part Number:

105676208 NF
1-056-762-08-NF STEARNS 25FT-LB 56700 Series Coupler Brake is designed for application where mounting the brake between the motor and driven load is the preferred or most convenient location.

Ordering Notes

STEARNS Products are normally stocked, but a standard 10-15 day lead times may apply. Please do not order expedited shipping without contacting our Sales Team for stock and availability.

MSRP: $1,367.98

Regular Price

USD

$

1,171

92

QTY
Login to View Discounts

Weight:

15 lbs

Dimensions:

12 x 16 x 14 inches

HS Code:

8505.20.0000

UPC:

782935286444

Technical Details

Stearns Series:

56700

Static Torque Lb.-ft.:

25

Coil Size:

#4

Enclosure NEMA:

NEMA4

Enclosure IEC:

IP54

Hub Bore Dia.:

D: 7/8"

Input Frame Size:

56C/143-5TC

Output Frame Size:

56C/143-5TC

Coil Voltage AC:

575//480

Coil Hz:

60//50

56700 Product Packet.pdf

APPLICATIONS: Designed for application where mounting the brake between the motor and driven load is the preferred or most convenient location. The are excellent for applications where a brake is needed to add to an existing equipment application without replacing the motor.

FEATURES:

  • Rugged Cast Aluminum Construction
  • Stearns brakes are well suited to most industrial applications
  • Coupler brakes are designed to be C-Face connected on both ends
  • These brakes are not suited for overhung loads to be applied to the output shaft
  • Manual Release Knob, Maintained with Automatic Spring-Set Electrically Reset
  • Adjustable torque
  • Manual Wear Adjustment
Image for 134-158-0200 BISON Shaft Adapter 7/8-5/8" Bushing Sleeve

134-158-0200 BISON Shaft Adapter 7/8-5/8" Bushing Sleeve

MSRP: $91.71

Regular Price

$

45

00

Image for #4 STEARNS Injection Molded 575VAC Class-H Coil 596647974

#4 STEARNS Injection Molded 575VAC Class-H Coil 596647974

MSRP: $376.95

Regular Price

$

211

00

Image for STEARNS 56000 Series REV-B 1-Friction Disc 566846200

STEARNS 56000 Series REV-B 1-Friction Disc 566846200

MSRP: $233.59

Regular Price

$

122

53

Image for STEARNS 56000 Series REV-B 3-Friction & Disc Kit 566860300

STEARNS 56000 Series REV-B 3-Friction & Disc Kit 566860300

MSRP: $1,006.35

Regular Price

$

545

12

Image for 20 & 25FT-LB STEARNS 56700 Series AC REV-C Support Plate 54256260014

20 & 25FT-LB STEARNS 56700 Series AC REV-C Support Plate 54256260014

MSRP: $600.51

Regular Price

$

325

29

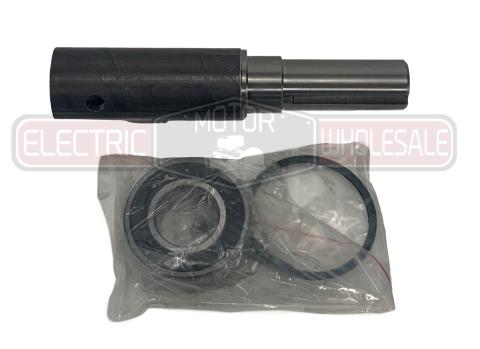

Image for STEARNS 56700 Series 7/8" 3-Disc Output Shaft Kit 566886900

STEARNS 56700 Series 7/8" 3-Disc Output Shaft Kit 566886900

MSRP: $600.51

Regular Price

$

325

29

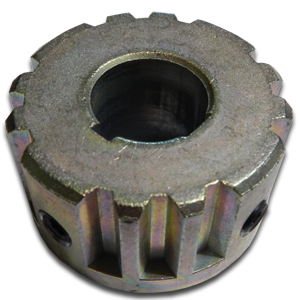

Image for STEARNS 56700 Series 3-Disc HUB 7/8" Bore 51651530002D
