GF2054 LEESON 1/2HP Single Phase Resilient Base Fan Motor

Electric Motors

Single Phase Electric Motors

Marathon Motors Single Phase

Marathon Single Phase HVAC Motors

Marathon Single Phase DP Fan and Blower Motors

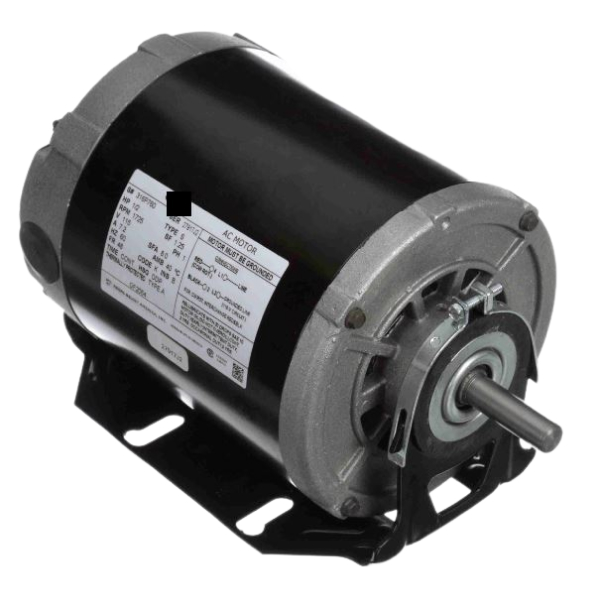

1/2HP LEESON 1725RPM 48Y ODP 1PH RESILIENT BASE FAN MOTOR GF2054

Picture is for reference only.

Part Number:

GF2054

Manufacturer:

Regal Rexnord Commercial

Manufacturer Part Number:

GF2054

GF2054 LEESON 1/2HP Single Phase General Purpose Split Phase Resilient Base Fan and Blower Motor

Ordering Notes

This part is non-returnable. Use the Cut-Sheet provided to confirm product specs.

MSRP: $574.00

Regular Price

USD

238

QTY

Shipping Details

Weight:

18 lbs

Dimensions:

12 x 16 x 12 inches

HS Code:

8501.40.4040

UPC:

691720113059

Technical Details

Specifications

Application:	Fan & Blower
Output HP:	1/2
Output KW:	0.37
Output RPM:	1725
Frame NEMA:	48Y
Mount NEMA:	Resilient Base
Enclosure NEMA:	DP
Enclosure IEC:	IP12
Voltage:	115/230
Frequency (Hz):	60

Documentation

Product Information Packet

Additional Information

General Purpose Split Phase Fan & Blower Motor with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type, not for outdoor use.

Features:

Split-phase design
Automatic reset thermal protector prevents overheating.
Dual-voltage (115/230) and wired for low voltage (115) out of the box
Ball bearings suitable for all angle mounting
