10HP MARATHON 3518RPM 215T EPFC 3PH EXPLOSION PROOF MOTOR U063C
10HP MARATHON 3518RPM 215T EPFC 3PH EXPLOSION PROOF MOTOR U063C

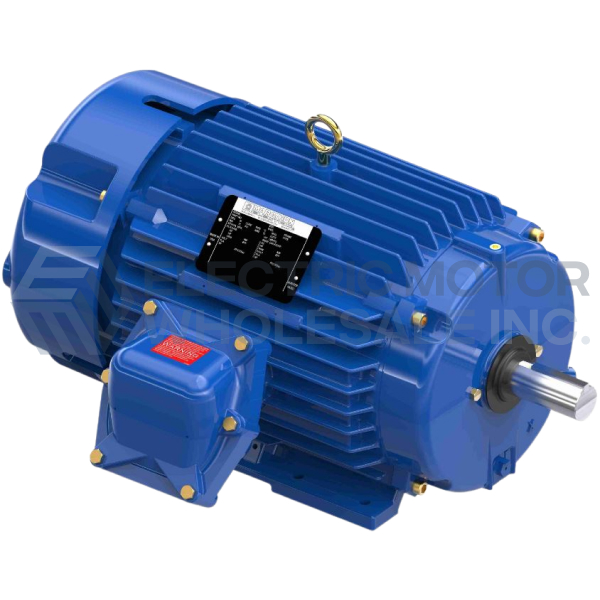

Picture is for reference only.
Part Number:
U063CModel/Spec Number:
215TTGCD6501Manufacturer:
Marathon LLC Product may be subject to factory lead times. Please consult our sales team for availability. Use the Data-Sheet provided to confirm product specs before purchasing.
MSRP: $2,414.00
Regular Price
USD
$
1,665
66
Shipping Details
Weight:
240 lbsDimensions:
29 x 35 x 25 inchesHS Code:
8501.52.8040UPC:
722856214157Technical Details
Specifications
Brand: | Marathon |
Application: | XP Severe Duty |
Output HP: | 10 |
Output KW: | 7.5 |
Output RPM: | 3518 |
Frame Size NEMA: | 215T |
Mount NEMA: | With Base |
Enclosure NEMA: | EPFC |
Enclosure IEC: | IP54 |
Voltage: | 230/460 |
Additional Information
APPLICATIONS: Designed and approved for application in hazardous environments having certain explosive gases or materials present. FEATURES: MAX GUARD® Class F insulation Internal and external surfaces treated with epoxy paint 1.15 Service Factor on sinewave or 1.0 Service Factor on IBGT power Precision balanced to .08”/sec. Normally closed thermostats (must be connected to control circuit) Shaft slinger Ball Bearings UL Listed File No. E12044 CSA Certified File No. LR47504 Three year warranty
