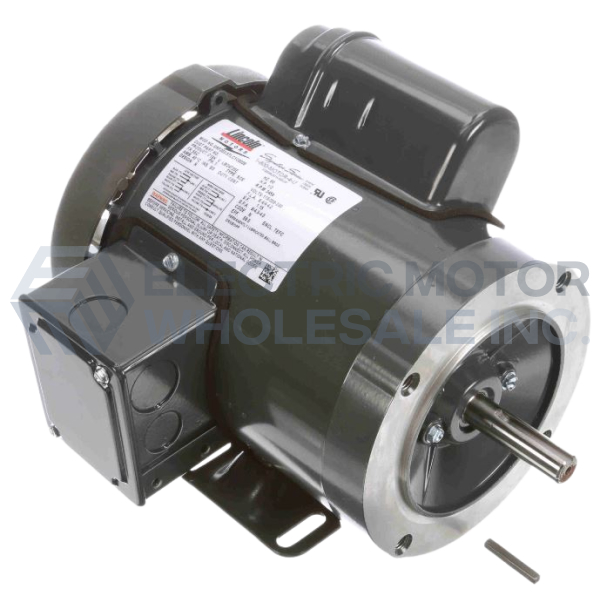

1HP LEESON 1725RPM 56C TEFC 115/208-230V 1PH MOTOR LM24616

1HP LEESON 1725RPM 56C TEFC 115/208-230V 1PH MOTOR LM24616


Part Number:

LM24616

Model/Spec Number:

SRF4S1TLC6028

Manufacturer:

Leeson Obsolete
LM24616 LEESON 1HP Single Phase Electric Motor for use where water, dust and dirt exposure exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

33 lbs

Dimensions:

11 x 17 x 9 inches

HS Code:

8501.40.0000

UPC:

691720041673

Technical Details

Application:

General Purpose

Output HP:

1

Output KW:

0.75

Output RPM:

1725

Frame NEMA:

56C

Mount NEMA:

C-Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

115/208-230

Frequency (Hz):

60
