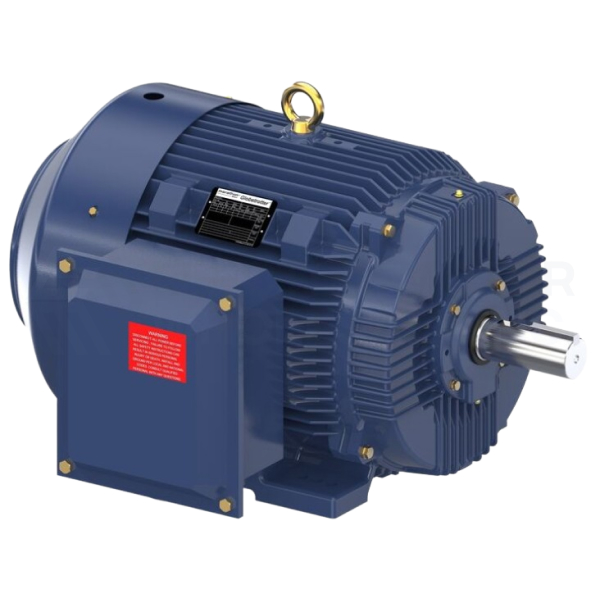

40HP MARATHON 890RPM 365T TEFC 3PH GLOBETROTTER MOTOR GT10123
40HP MARATHON 890RPM 365T TEFC 3PH GLOBETROTTER MOTOR GT10123

Part Number:
GT10123Model/Spec Number:
365TTFCD6101Manufacturer:
Marathon ObsoleteThis product has been discontinued with no direct replacement from the manufacturer. Please contact our sales team for functional replacement options.
Shipping Details
Weight:
908 lbsDimensions:
39 x 47 x 34 inchesHS Code:
8501.52.0000UPC:
722856214539Technical Details
Specifications
Brand: | Marathon |
Application: | General Purpose |
Output HP: | 40 |
Output KW: | 30 |
Output RPM: | 890 |
Frame Size NEMA: | 365T |
Mount NEMA: | With Base |
Enclosure NEMA: | TEFC |
Enclosure IEC: | IP55 |
Voltage: | 460 |
Documentation
Additional Information
APPLICATIONS: General purpose Globetrotter NEMA Premium Efficiency used on compressors, pumps, conveyors, blowers, and other machinery in environments that are relatively clean and dry. Substantial energy savings can be realized when using these high efficiency motors. Guaranteed efficiencies offer an eXtra Return on your Investment when using these premium efficiency motors on high cycle or long run time applications.
FEATURES:
- Meets or exceeds NEMA Premium® efficiencies
- Class F Insulation System
- Dual Frame Mounting
- UL®* listed, UL certified for Canada and CE®* mark
This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.
This product has been discontinued with no direct replacement from the manufacturer. Please contact our sales team for functional replacement options.
