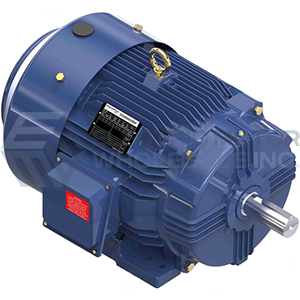

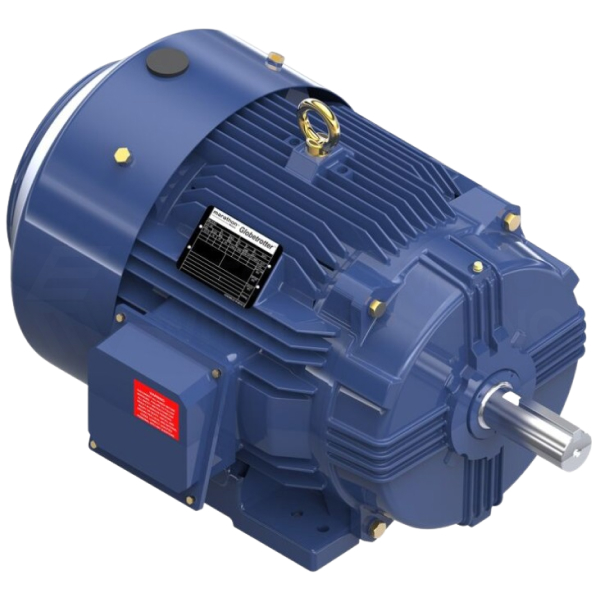

10HP MARATHON 880RPM 284T TEFC 3PH GLOBETROTTER MOTOR GT10113


Part Number:

GT10113

Model/Spec Number:

284TTFCD6101

Manufacturer:

Marathon LLC
GT10113 MARATHON 10HP Three Phase TEFC Globetrotter NEMA Premium Efficiency Motor used on compressors, pumps, conveyors, blowers, and other machinery in environments that are relatively clean and dry.

Technical Details

Brand:

Marathon

Application:

General Purpose

Output HP:

10

Output KW:

7.5

Output RPM:

880

Frame Size NEMA:

284T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

230/460

APPLICATIONS: General purpose Globetrotter NEMA Premium Efficiency used on compressors, pumps, conveyors, blowers, and other machinery in environments that are relatively clean and dry. Substantial energy savings can be realized when using these high efficiency motors. Guaranteed efficiencies offer an eXtra Return on your Investment when using these premium efficiency motors on high cycle or long run time applications.

FEATURES:

  • 1 7/8" shaft output diameter
  • Class F Insulation
  • UL Recognized, CSA Certified, CE Mark

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.
