25HP LEESON 3515RPM 284TC EPFC 3PH EXPLOSION PROOF MOTOR G850593.00

25HP LEESON 3515RPM 284TC EPFC 3PH EXPLOSION PROOF MOTOR G850593.00

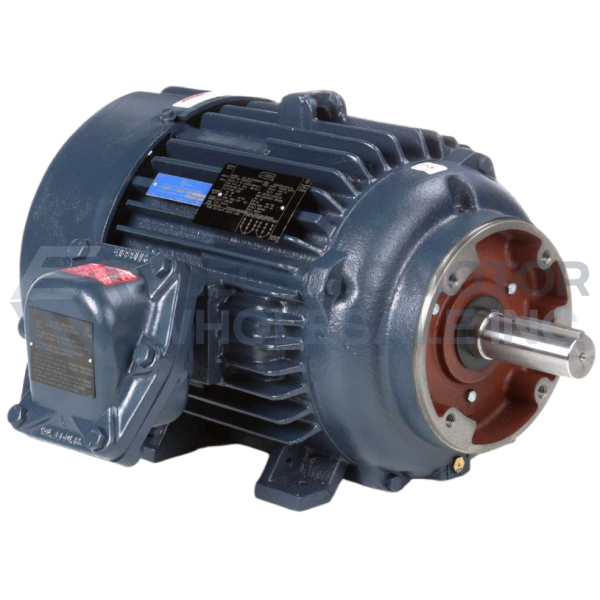

EPFC WB CAST IRON.jpg
Picture is for reference only.

Part Number:

G850593.00

Model/Spec Number:

284TSTGP14001BB

Manufacturer:

Leeson Obsolete
G850593.00 LEESON 25HP Three Phase Explosion Proof Motor is designed and approved for applications in hazardous environments having certain explosive gases or materials present.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

403 lbs

HS Code:

8501.52.0000

Technical Details

Brand:

Leeson

Application:

Explosion Proof

Output HP:

25

Output KW:

18.5

Output RPM:

3515

Frame Size NEMA:

284TC

Mount NEMA:

C Face With Base

Enclosure NEMA:

EPFC

Voltage:

230/460

Frequency (Hz):

60//50

Motor Drawing

Connection Diagram

Explosion-Proof-Definitions
