20HP MARATHON 3540RPM 256T EPFC 3PH EXPLOSION PROOF MOTOR E505A

20HP MARATHON 3540RPM 256T EPFC 3PH EXPLOSION PROOF MOTOR E505A

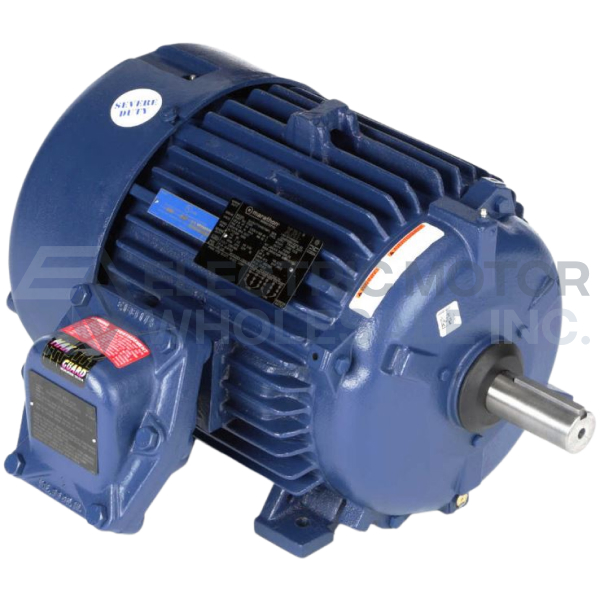

254T EPFC XRI WB.jpg
Picture is for reference only.

Part Number:

E505A

Model/Spec Number:

256TTGCD6501

Manufacturer:

Marathon LLC
E505A MARATHON 20HP Three Phase XRI Blue Chip Explosion Proof Premium Motor is designed and approved for application in hazardous environments having certain explosive gases or materials present.
MSRP: $4,310.00

Regular Price

USD

$

2,973

90

QTY
Login to View Discounts

Weight:

369 lbs

Dimensions:

33 x 38 x 26 inches

HS Code:

8501.52.8040

UPC:

722856213976

Technical Details

Brand:

Marathon

Application:

XP Severe Duty

Output HP:

20

Output KW:

14.9

Output RPM:

3540

Frame Size NEMA:

256T

Mount NEMA:

With Base

Enclosure NEMA:

EPFC

Enclosure IEC:

IP54

Voltage:

230/460//190/380

Product Information Packet

Explosion-Proof-Definitions.pdf

APPLICATIONS: Designed and approved for application in hazardous environments having certain explosive gases or materials present.

FEATURES:

  • MAX GUARD® Class F insulation
  • Internal and external surfaces treated with epoxy paint
  • Precision balanced to .08”/sec.
  • Normally closed thermostats (must be connected to control circuit)
  • Shaft slinger
  • Ball Bearings
  • UL Listed File No. E12044
  • CSA Certified File No. LR47504
  • Three year warranty
