1.5HP LEESON 1755RPM 145TC TENV 3PH Inverter Duty Motor 122131.00

1.5HP LEESON 1755RPM 145TC TENV 3PH Inverter Duty Motor 122131.00

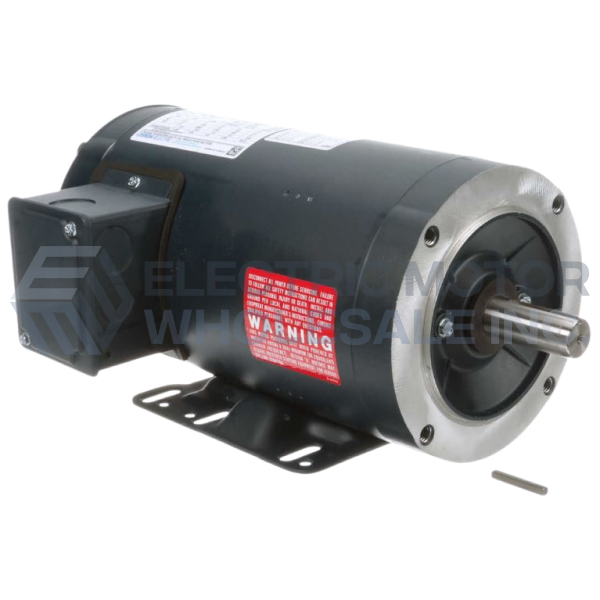

Picture is for reference only.

Part Number:

122131.00

Model/Spec Number:

C145T17NK6

Manufacturer:

Leeson Obsolete
122131.00 LEESON 1.5HP Inverter Duty Electric Motor is designed for inverter or vector duty applications where up to a 1000:1 constant torque speed range is required.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

54 lbs

Dimensions:

13 x 22 x 11 inches

HS Code:

8501.52.4000

UPC:

691720044957

Technical Details

Brand:

Leeson

Application:

Vector Duty

Output HP:

1.5

Output KW:

1.1

Output RPM:

1755

Frame Size NEMA:

145TC

Mount NEMA:

C Face With Base

Enclosure NEMA:

TENV

Enclosure IEC:

IP43

Voltage:

230/460

Product Information Packet
