2HP MARATHON 1745RPM 90L B3/B14 IP55 3PH GLOBETROTTER IEC MOTOR R378A

2HP MARATHON 1745RPM 90L B3/B14 IP55 3PH GLOBETROTTER IEC MOTOR R378A


Part Number:

R378A

Model/Spec Number:

090LT17FH6419

Manufacturer:

Regal IEC
R378A MARATHON 2HP Globetrotter B3/B14 IEC Motor is designed for use on fans, pumps, compressors, conveyors, and other equipment requiring IEC dimensions and electrical standards.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

48 lbs

Dimensions:

12 x 18 x 13 inches

HS Code:

8501.52.4000

UPC:

722856027207

Technical Details

Brand:

Marathon

Application:

General Purpose

Output HP:

2

Output KW:

1.5

Output RPM:

1745//1435

Frame Size IEC:

90L

Mount IEC:

B3/B14 Foot/C-Face

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

IEC Shaft Dia.:

25mm

Product Information Packet

APPLICATIONS: For use on fans, pumps, compressors, conveyors, and other equipment requiring IEC dimensions and electrical standards. The Globetrotter is not only designed to International standards but meets NEMA performance and efficiency standards making it suitable for requirements worldwide.

FEATURES:

  • B14 "FT" (C-Face) mounting
  • Meets IE3 European and NEMA Premium® efficiencies
  • MAX GUARD® Class F Insulation, Class B rise @ rated KW
  • Rotatable/Removable Base (63-90 frame)
  • Top Mounted/Oversized gasketed terminal box
  • Meets IEEE45, IEC60092 & USCG CFR46 Marine Duty (Below Deck)
  • 1.15 Service Factor on 60 Hz sine wave, 1.0 SF or VFD
  • IEC Design “N” with NEMA “B” Torques
  • Terminal Blocks, Stud Type, Zero Creepage
  • Meets IEC 34 electrical standards
  • Meets IEC 72 dimensions and tolerances
  • CE Marked

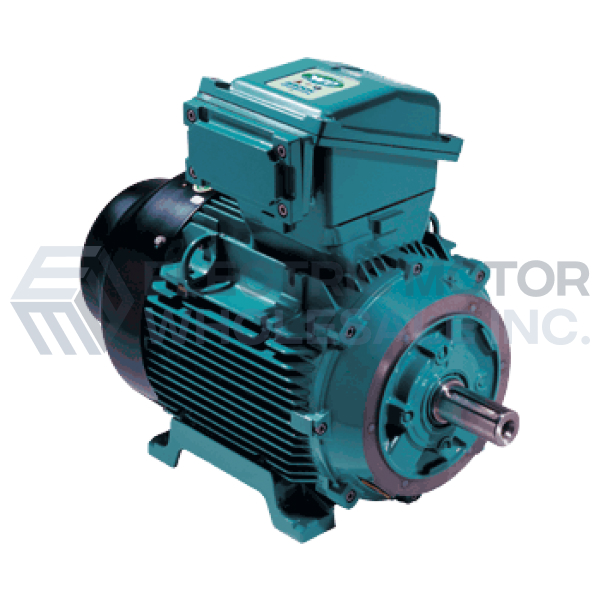

Image for 2HP Worldwide 1800RPM 90L Frame B34 IP55 3PH Aluminum IEC Motor IEC2-18-90-C

2HP Worldwide 1800RPM 90L Frame B34 IP55 3PH Aluminum IEC Motor IEC2-18-90-C

MSRP: $809.38

Regular Price

$

431

63

Image for 2HP BROOK CROMPTON 1800RPM 90LC B14 230/460V 3PH IEC MOTOR BA4M002V4C

2HP BROOK CROMPTON 1800RPM 90LC B14 230/460V 3PH IEC MOTOR BA4M002V4C

MSRP: $674.00

Regular Price

$

465

00

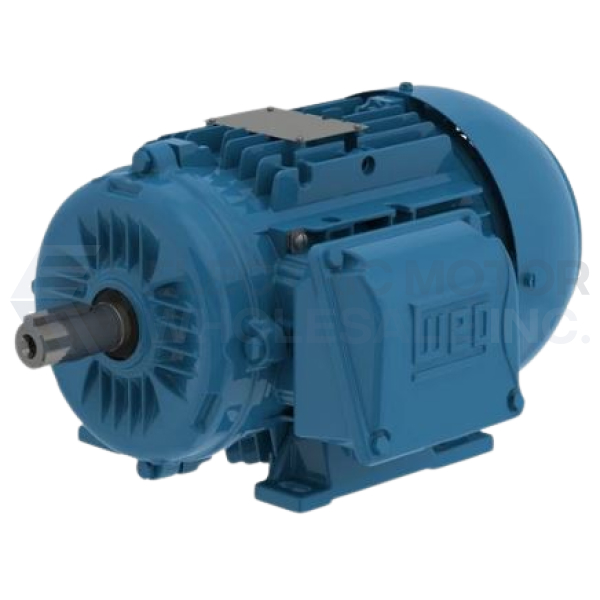

Image for 2HP WEG 1755RPM 90S/L FRAME IP55 B3 IEC TRU-METRIC MOTOR 00158ET3EAL90L-W22
