3/4HP MARATHON 3400RPM 71 B3/B14 IP55 3PH GLOBETROTTER IEC MOTOR R369

3/4HP MARATHON 3400RPM 71 B3/B14 IP55 3PH GLOBETROTTER IEC MOTOR R369

71 B3 B14.jpg

Part Number:

R369

Model/Spec Number:

071T34FH5410

Manufacturer:

Regal IEC
R369 MARATHON 3/4HP Globetrotter B3/B14 IEC Motor is designed for use on fans, pumps, compressors, conveyors, and other equipment requiring IEC dimensions and electrical standards.

Ordering Notes

Discontinued item with limited availability, subject to prior sale. Non-Returnable

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

20 lbs

Dimensions:

12 x 14 x 12 inches

HS Code:

8501.51.4040

UPC:

722856027115

Technical Details

Brand:

Marathon

Application:

General Purpose

Output HP:

3/4

Output KW:

0.55

Output RPM:

3400//2780

Frame Size IEC:

71

Mount IEC:

B3/B14 Foot/C-Face

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

IEC Shaft Dia.:

14mm

Product Information Packet

APPLICATIONS: For use on fans, pumps, compressors, conveyors, and other equipment requiring IEC dimensions and electrical standards. The Globetrotter is not only designed to International standards but meets NEMA performance and efficiency standards making it suitable for requirements worldwide.

FEATURES:

  • B14 "FT" (C-Face) mounting
  • Meets IE3 European and NEMA Premium® efficiencies
  • MAX GUARD® Class F Insulation, Class B rise @ rated KW
  • Rotatable/Removable Base (63-90 frame)
  • Top Mounted/Oversized gasketed terminal box
  • Meets IEEE45, IEC60092 & USCG CFR46 Marine Duty (Below Deck)
  • 1.15 Service Factor on 60 Hz sine wave, 1.0 SF or VFD
  • IEC Design “N” with NEMA “B” Torques
  • Terminal Blocks, Stud Type, Zero Creepage
  • Meets IEC 34 electrical standards
  • Meets IEC 72 dimensions and tolerances
  • CE Marked

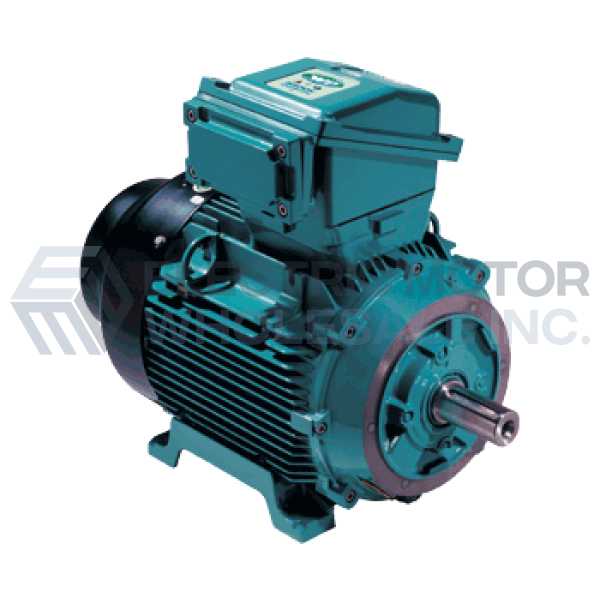

Image for 3/4HP BROOK CROMPTON 3600RPM 71C B14 230/460V 3PH IEC MOTOR BA2M.75V4C
