1/2HP MARATHON 1695RPM 71 TEFC IP55 3PH B3 GLOBETROTTER IEC MOTOR R307

1/2HP MARATHON 1695RPM 71 TEFC IP55 3PH B3 GLOBETROTTER IEC MOTOR R307


Part Number:

R307

Model/Spec Number:

071T17FH5327

Manufacturer:

Regal IEC
R307 MARATHON 1/2HP Globetrotter B3 IEC Motor is designed for use on fans, pumps, compressors, conveyors, and other equipment requiring IEC dimensions and electrical standards.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

20 lbs

Dimensions:

10 x 14 x 12 inches

HS Code:

8501.51.4000

UPC:

722856026217

Technical Details

Brand:

Marathon

Application:

General Purpose

Output HP:

1/2

Output KW:

0.37

Output RPM:

1695//1380

Frame Size IEC:

71

Mount IEC:

B3 Foot Mount

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

IEC Shaft Dia.:

14mm

Product Information Packet

APPLICATIONS: For use on fans, pumps, compressors, conveyors, and other equipment requiring IEC dimensions and electrical standards. The Globetrotter is not only designed to International standards but meets NEMA performance and efficiency standards making it suitable for requirements worldwide.

FEATURES:

  • Meets IE3 European and NEMA Premium® efficiencies
  • MAX GUARD® Class F Insulation, Class B rise @ rated KW
  • Rotatable/Removable Base (63-90 frame)
  • Top Mounted/Oversized gasketed terminal box
  • Meets IEEE45, IEC60092 & USCG CFR46 Marine Duty (Below Deck)
  • 1.15 Service Factor on 60 Hz sine wave, 1.0 SF or VFD
  • IEC Design “N” with NEMA “B” Torques
  • Terminal Blocks, Stud Type, Zero Creepage
  • Meets IEC 34 electrical standards
  • Meets IEC 72 dimensions and tolerances
  • CE Marked

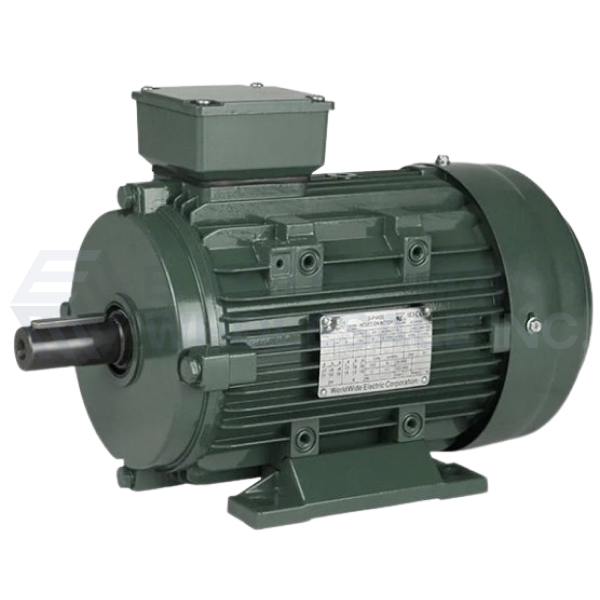

Image for 1/2HP Worldwide 1800RPM 71 Frame B3 IP55 3PH Aluminum IEC Motor IEC12-18-71
