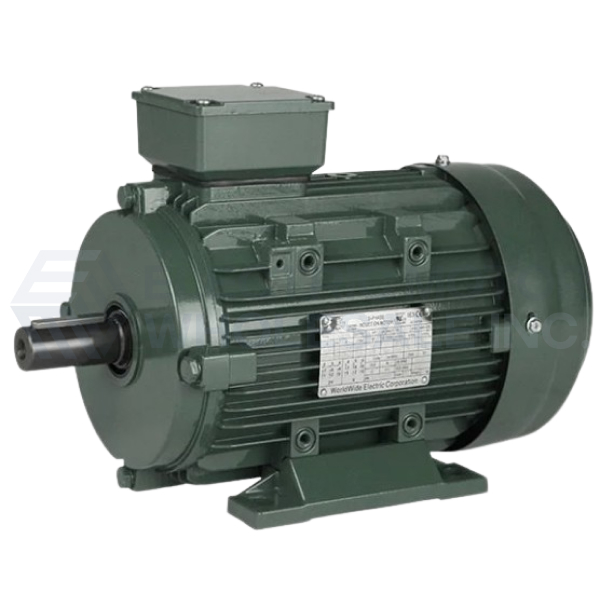

1/3HP MARATHON 3430RPM 63 TEFC IP55 3PH B3 GLOBETROTTER IEC MOTOR R303
1/3HP MARATHON 3430RPM 63 TEFC IP55 3PH B3 GLOBETROTTER IEC MOTOR R303
Product Overview
R303 MARATHON 1/3HP Globetrotter B3 IEC Motor is designed for use on fans, pumps, compressors, conveyors, and other equipment requiring IEC dimensions and electrical standards.Part Number:
R303Model/Spec Number:
063T34FH5302Manufacturer:
Regal IECManufacturer Part Number:
R303Technical Details
Specifications
| Brand | Marathon |
| Application | General Purpose |
| Output HP | 1/3 |
| Output KW | 0.25 |
| Output RPM | 3430//2760 |
| Frame Size IEC | 63 |
Documentation
Additional Information
APPLICATIONS: For use on fans, pumps, compressors, conveyors, and other equipment requiring IEC dimensions and electrical standards. The Globetrotter is not only designed to International standards but meets NEMA performance and efficiency standards making it suitable for requirements worldwide.
FEATURES:
- Meets IE3 European and NEMA Premium® efficiencies
- MAX GUARD® Class F Insulation, Class B rise @ rated KW
- Rotatable/Removable Base (63-90 frame)
- Top Mounted/Oversized gasketed terminal box
- Meets IEEE45, IEC60092 & USCG CFR46 Marine Duty (Below Deck)
- 1.15 Service Factor on 60 Hz sine wave, 1.0 SF or VFD
- IEC Design “N” with NEMA “B” Torques
- Terminal Blocks, Stud Type, Zero Creepage
- Meets IEC 34 electrical standards
- Meets IEC 72 dimensions and tolerances
- CE Marked
