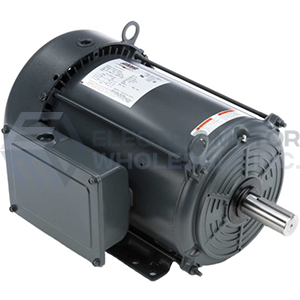

10HP MARATHON 3500RPM 215T 208-230V TEFC 1PH MOTOR I225

10HP MARATHON 3500RPM 215T 208-230V TEFC 1PH MOTOR I225

GENERAL PURPOSE TEFC 213.jpg

Part Number:

I225

Model/Spec Number:

215TBFW7001

Manufacturer:

Marathon LLC
I225 MARATHON 10HP Single Phase General Purpose Electric Motor

Technical Details

Application:

General Purpose

Output HP:

10

Output KW:

7.5

Output RPM:

3500

Frame NEMA:

215T

Mount NEMA:

Base Mount

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

208-230

Frequency (Hz):

60

Product Information Packet

APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.

FEATURES:

  • No overload protection
  • Capacitor Start/Capacitor Run design for reduced amperage
  • Ball bearings
  • Will accept C-Face kit
  • Class F Insulation
  • Heavy gauge steel construction
  • 1.0 Service Factor
  • UL Recognized and CSA Certified

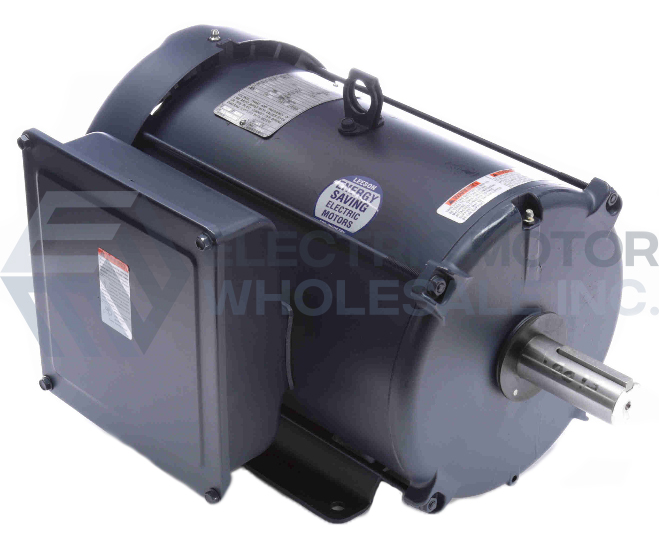

Image for 10HP LEESON 3500RPM 215T TEFC 208-230V 1PH MOTOR 140685.00
