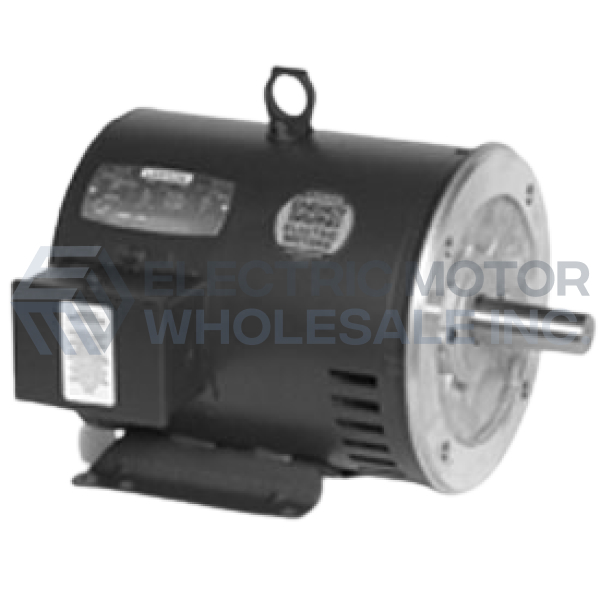

2HP LINCOLN 1740RPM 145TC DP 3PH SIGNATURE SERIES MOTOR LM32768

2HP LINCOLN 1740RPM 145TC DP 3PH SIGNATURE SERIES MOTOR LM32768


Part Number:

LM32768

Model/Spec Number:

SSD4B2TC61

Manufacturer:

Lincoln
LM32768 LINCOLN 2HP Three Phase DP Motor is designed for use where water and dust exposure is moderate.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

44 lbs

Dimensions:

12 x 20 x 12 inches

HS Code:

8501.52.8040

UPC:

691720003374

Technical Details

Brand:

Lincoln

Application:

General Purpose

Output HP:

2

Output KW:

1.5

Output RPM:

1750

Frame Size NEMA:

145TC

Mount NEMA:

C Face With Base

Enclosure NEMA:

DP

Enclosure IEC:

IP22

Voltage:

230/460

Motor Drawing

Connection Diagram

Volts 208-230 Volts 460 Volts
F.L. Amps 6.2-6 F.L. Amps 3 F.L. Amps
S. F Amps 7.05-6.8 S. F Amps 3.4 S. F Amps
RPM 1800 Hertz 60
HP 2 Duty CONTINUOUS TYPE TDR
KW 1.49
Frame 145T Serv. Factor 1.25 Phase 3
Max Amb 40 Design B Code N
Insul Class F Protection NOT Therm.Prot.
Eff 100% 86.5 Eff 75%   PF 74.5
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number CC004A CE Yes Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt.   Enclosure DP Lubrication STANDARD
Nameplate   Mounting RIGID Rotation REV
