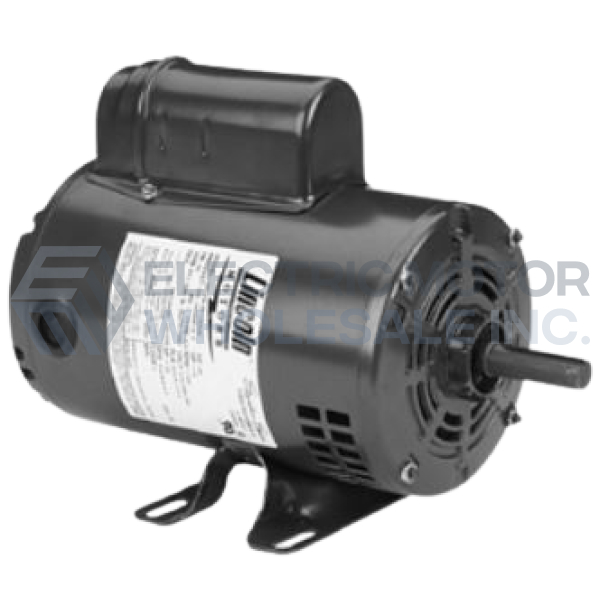

3/4HP LINCOLN 3450RPM 56 DP 115/208-230V 1PH MOTOR LM24674
3/4HP LINCOLN 3450RPM 56 DP 115/208-230V 1PH MOTOR LM24674
Part Number:
LM24674Manufacturer:
Leeson ObsoleteClick below to view suggested functional replacement.
Shipping Details
Weight:
23 lbsDimensions:
12 x 20 x 12 inchesHS Code:
8501.40.4040Technical Details
Specifications
Application: | General Purpose |
Output HP: | 3/4 |
Output KW: | 0.56 |
Output RPM: | 3450 |
Frame NEMA: | S56 |
Mount NEMA: | Base Mount |
Enclosure NEMA: | DP |
Enclosure IEC: | IP12 |
Voltage: | 115/208-230 |
Frequency (Hz): | 60 |
Documentation
Additional Information
| Volts | 115 | Volts | 208-230 | Volts | |
| F.L. Amps | 9.6 | F.L. Amps | 4.4-4.8 | F.L. Amps | |
| S. F Amps | 10.4 | S. F Amps | 5.3-5.2 | S. F Amps | |
|
|
|||||
| RPM | 3600 | Hertz | 60 | ||
| HP | 3/4 | Duty | CONTINUOUS | TYPE | SCS |
| KW | 0.56 | ||||
| Frame | S56 | Serv. Factor | 1.25 | Phase | 1 |
| Max Amb | 40 | Design | GENERAL DUTY | Code | K |
| Insul Class | B | Protection | NOT | Therm.Prot. | |
| Eff 100% | Eff 75% | PF | |||
| UL | V-INS, CONST UL REC | CSA | Yes | Bearing OPE | |
| CC Number | CE | Bearing PE | |||
| Load Type | Inverter Type | Speed Range | UNK | ||
|
|
|||||
| Motor Wt. | 21 LB | Enclosure | DP | Lubrication | STANDARD |
| Nameplate | Mounting | RIGID | Rotation | REV | |
