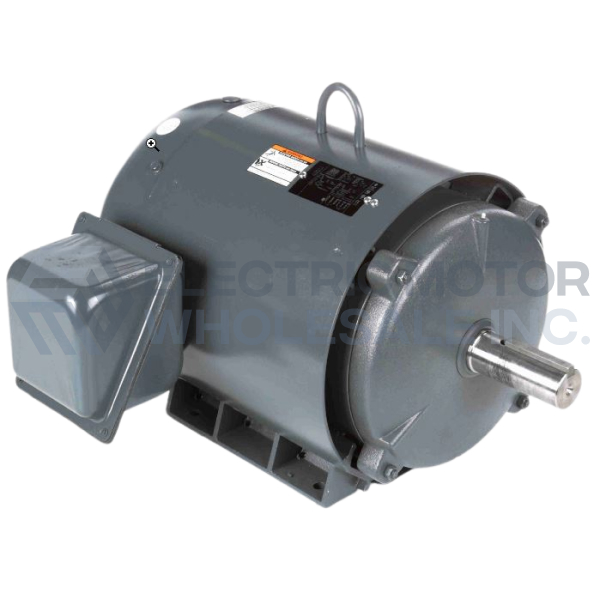

75HP LINCOLN 1750RPM 365T TEFC 3PH PREMIUM MOTOR LM19759

Part Number:

LM19759

Model/Spec Number:

CCF4B75T61Y

Manufacturer:

Lincoln

LM19759 LINCOLN 75HP PREMIUM motor carries a three-year warranty in general purpose and inverter fed applications. This motor meets or exceeds most utility rebate programs and the EPACT federally mandated efficiency levels.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

1,018 lbs

Dimensions:

24 x 36 x 24 inches

HS Code:

8501.52.0000

Technical Details

Specifications

Brand:	Lincoln
Application:	General Purpose
Output HP:	75
Output KW:	56.0
Output RPM:	1750
Frame Size NEMA:	365T
Mount NEMA:	With Base
Enclosure NEMA:	TEFC
Enclosure IEC:	IP43
Voltage:	230/460

Additional Information

Volts	208-230	Volts	460	Volts	190/380
F.L. Amps	182-171	F.L. Amps	85.5	F.L. Amps	162/81
S. F Amps	210-199	S. F Amps	99.5	S. F Amps	186/93

RPM	1800	Hertz	60/50
HP	75	Duty	CONTINUOUS	TYPE	TFS
KW	56
Frame	365T	Serv. Factor	1.15	Phase	3
Max Amb	40	Design	B	Code	G
Insul Class	F	Protection	NOT	Therm.Prot.
Eff 100%	95.8	Eff 75%		PF	85.5
UL	V-INS, CONST UL REC	CSA	Yes	Bearing OPE	6313
CC Number	CC004A	CE	Yes	Bearing PE	6313
Load Type		Inverter Type		Speed Range	NONE

Motor Wt.	1005 LB	Enclosure	TEFC	Lubrication	STANDARD
Nameplate	B-93458-C-N-FGMNP-A-X	Mounting	RIGID	Rotation	REV
