Product Overview

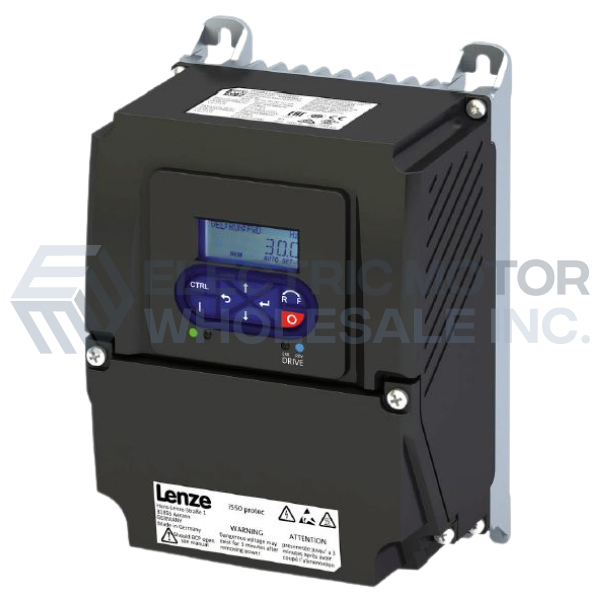

I55AP275C00301K00S LENZE 10HP i550 Protec Series NEMA1 Variable Frequency Drive designed for motor applications where dynamic speed and torque control is demanded.

Part Number:

I55AP275C00301K00S

Model/Spec Number:

I55AP275C00301K00S

Manufacturer:

Lenze

Manufacturer Part Number:

16469968

Technical Details

Specifications

Series	i550 Protec
Output HP	10
Output KW	7-10.9
Input Voltage	200-240
Input Phase	3
Hz Rating	60

Documentation

i550 Operation Manual.pdf

i550 Protec-Ref Card.pdf

Additional Information

The i550 protec is designed for motor applications where dynamic speed and torque control is demanded, making the units ideal for many applications like conveyors, packaging equipment plus fan and pump systems. Based on the established hardware and software of the i500 cabinet inverters — this means same drive functionality and user interaction. DC-injection braking, Brake management for brake control with low rate of wear, Dynamic braking through brake resistor, S-ramps for smooth acceleration and deceleration, Flying restart circuit, PID controller, DC connection

First decentral drive in the market with IO-Link Device Interface
Sensorless synchronous motor control
Intuitive user interface for fast setup and an easy navigation parameter structure
EPM module for simple series commissioning and device replacement
USB Micro diagnostic interface on board
Comply with the future EN 50598-2 standard
24 Month factory warranty
