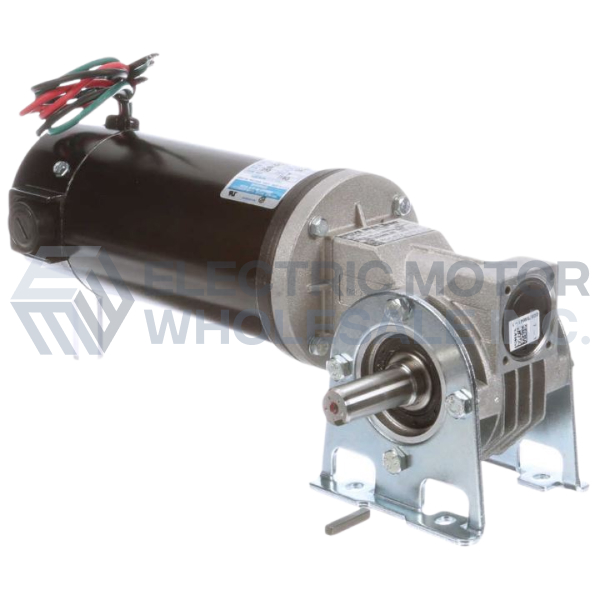

1/8HP LEESON 45RPM TENV 90VDC BRAVO SERIES RIGHT ANGLE GEARMOTOR M1135291.00

1/8HP LEESON 45RPM TENV 90VDC BRAVO SERIES RIGHT ANGLE GEARMOTOR M1135291.00

BRAVO SERIES.jpg

Part Number:

M1135291

Model/Spec Number:

M34D17NZ30

Manufacturer:

Leeson Obsolete
M1135291.00 LEESON 1/8HP 45RPM SCR Rated Bravo Series SUB-FHP DC Right Angle Gearmotor is performance matched for continuous service over 60:1 speed range. Constant torque throughout the speed range when powered by a full-wave unfiltered SCR-type adjustable speed control having a typical form factor of 1.3 to 1.4.

Item Discontinued

Click below to request an agent review potential options.

Weight:

12 lbs

Dimensions:

8 x 17 x 8 inches

HS Code:

8501.31.4000

UPC:

691720321843

Technical Details

Design:

Right Angle Shaft

Input HP:

1/8

Output KW:

0.10

Output RPM:

45

Gear Ratio:

39:1

Torque Lb-in.:

87

Voltage:

90

Full Load Amperage:

1.6

Application:

General Purpose

Frame Size:

34

Product Information Packet
