GROVE GEAR Cast Iron Right Angle Speed Reducers

/

GROVE H Series Gear Reducers

/

GROVE GR-H815 Series H1 Hollow Bore Gear Reducers

/

GR-H815-5-H1-10 GROVE 5:1 H1 RIGHT ANGLE GEAR REDUCER GR8150501.10

GR-H815-5-H1-10 GROVE 5:1 H1 RIGHT ANGLE GEAR REDUCER GR8150501.10

Picture is for reference only.

Part Number:

GR8150501.10

Manufacturer:

Grove Gear Obsolete

Manufacturer Part Number:

GR-H815-5-H1-10
GR8150501.10 GROVE GR-H815-5-H1-10 Right Angle Gear Reducer is designed for Wide variety of applications requiring slow speed and high torque, ideal for conveyors, material handling, textile machines, packaging machinery, etc.

Ordering Notes

GROVE Gearing products are Non-Returnable. Once the order is placed it cannot be canceled.

Informational Item

This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.

Free No Rush Shipping

Weight:

23 lbs

Dimensions:

12 x 18 x 12 inches

HS Code:

8483.00.0000

Technical Details

Max Input HP @1750:

1.5

Output RPM @1750:

350

Reduction Ratio:

5:1

Torque (lb-in)@1750rpm:

323

Overhung Load (lbs.):

860

Shaft Center Distance:

1.54

Shaft Center Height:

1.91

Mount Footprint:

2.75” x 4.19”

NEMA Input Mounting:

Solid Shaft

Mount Style:

H

GRH815 Product Packet.pdf

Grove Cast Iron Right Angle Worm Gear Reducer is designed for a wide variety of applications requiring slow speed and high torque, ideal for conveyors, material handling, textile machines, packaging machinery, etc.

FEATURES:

  • Heavy duty cast iron housing
  • Factory-filled premium Mobil Glygoyle 460 polyalkalene lubricant
  • Precision machined mounting surfaces
  • O-rings on input and output covers
  • Viton double lip seals provide extended life
  • Bronze worm gear chill cast from high quality bronze
  • Tapered roller bearings
  • Premium Grade 5 assembly bolts throughout
Image for GR815 & GR818 Grove Torque Arm Bracket G185451.00

GR815 & GR818 Grove Torque Arm Bracket G185451.00

MSRP: $214.97

Regular Price

$

127

00

Image for GR-GRG813-842 GROVE GEAR Reaction Rod Kit G185152.00

GR-GRG813-842 GROVE GEAR Reaction Rod Kit G185152.00

Image for GR815 CAST IRON OUTPUT STYLE F FLANGE G185131.00

GR815 CAST IRON OUTPUT STYLE F FLANGE G185131.00

MSRP: $246.03

Regular Price

$

140

00

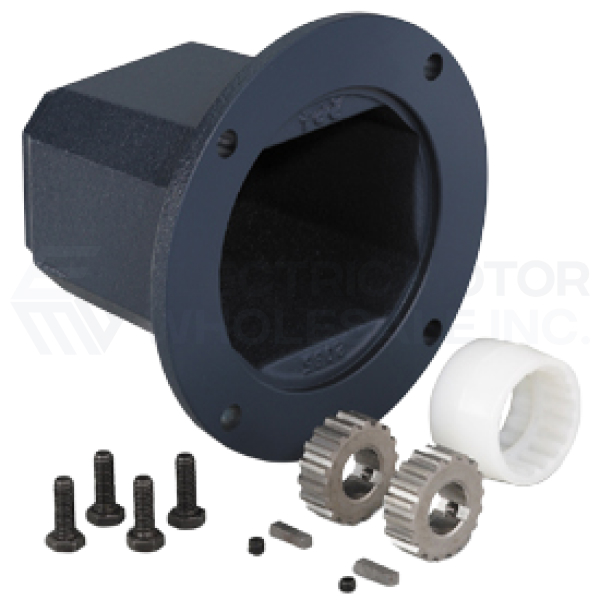

Image for GR815 GROVE BM STYLE 56C INPUT FLANGE KIT G185163.00
