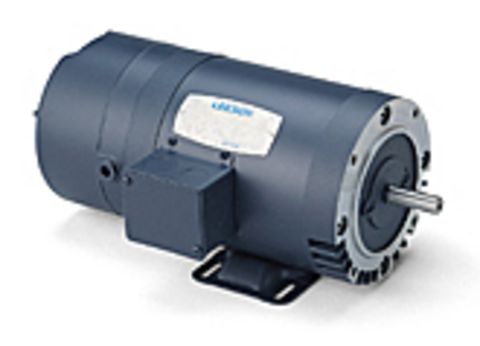

10HP LEESON 1760RPM 215TC DP 3PH BRAKE MOTOR G140638.00

10HP LEESON 1760RPM 215TC DP 3PH BRAKE MOTOR G140638.00


Part Number:

G140638.00

Model/Spec Number:

C215T17DK4

Manufacturer:

Leeson Obsolete
G140638.00 LEESON 10HP Three Phase Drip-Proof Brake motor is designed for use with conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

69 lbs

Dimensions:

12 x 18 x 12 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

Brakemotor

Output HP:

10

Output KW:

7.5

Output RPM:

1760

Frame Size NEMA:

215TC

Mount NEMA:

C Face With Base

Enclosure NEMA:

DP

Enclosure IEC:

IP22

Voltage:

230/460

Motor Drawing REF DASH-1100

Connection Diagram
