5HP LEESON 1755RPM 184TC DP 3PH BRAKE MOTOR G131559.00

5HP LEESON 1755RPM 184TC DP 3PH BRAKE MOTOR G131559.00

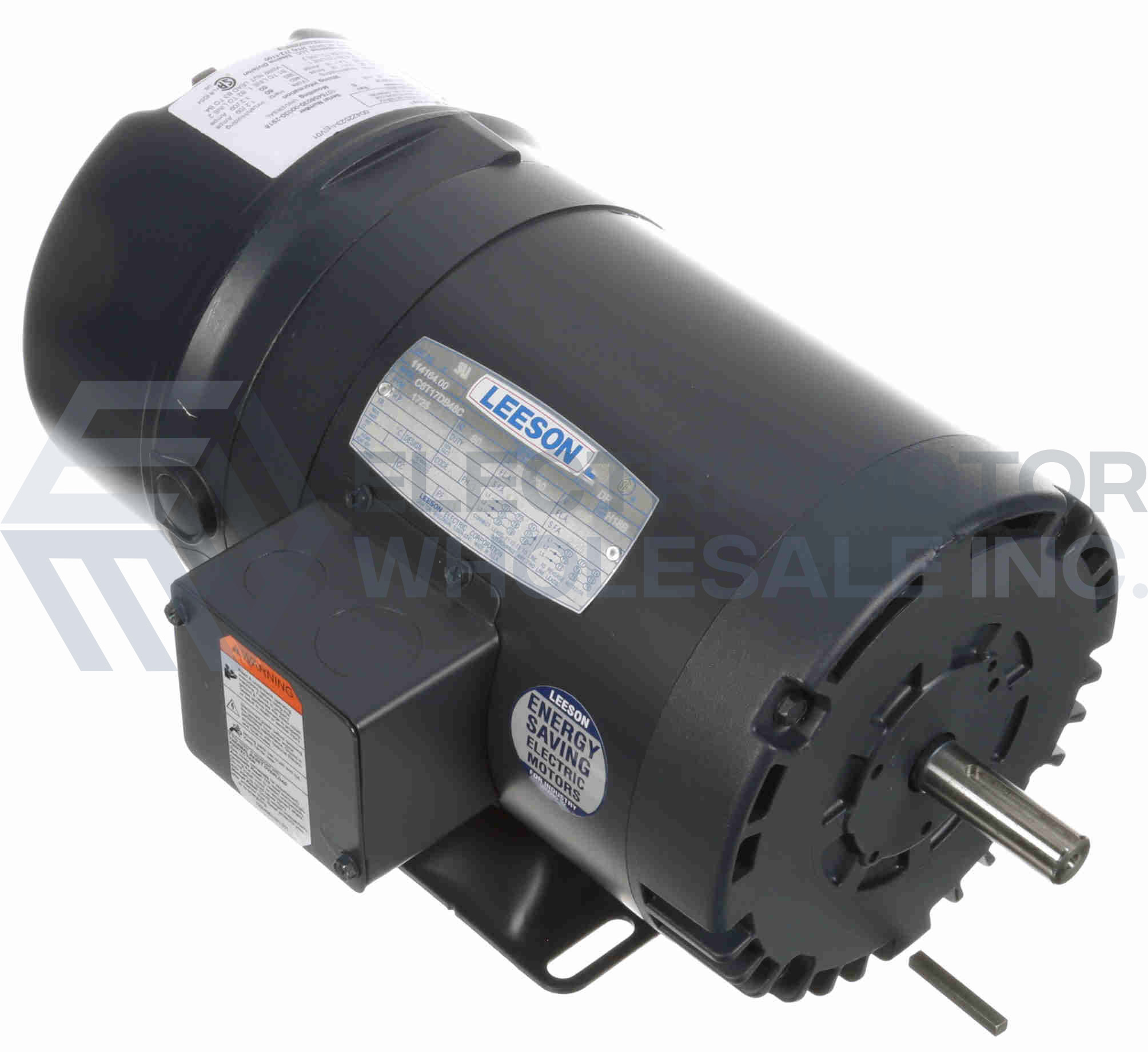

Picture is for reference only.

Part Number:

G131559.00

Model/Spec Number:

C184T17DK21

Manufacturer:

Leeson Obsolete
G131559 LEESON 5HP Three Phase Drip-Proof Brake motor is designed for use with conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

69 lbs

Dimensions:

12 x 18 x 12 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

Brakemotor

Output HP:

5

Output KW:

3.7

Output RPM:

1755

Frame Size NEMA:

184TC

Mount NEMA:

C Face With Base

Enclosure NEMA:

DP

Enclosure IEC:

IP22

Voltage:

230/460

Motor Drawing REF DASH-950

Connection Diagram

Volts 208-230 Volts 460 Volts F.L. Amps 14.6-13.2 F.L. Amps 6.6 F.L. Amps S. F Amps 16.6-15 S. F Amps 7.5 S. F Amps RPM 1800 Hertz 60 HP 5 Duty CONTINUOUS TYPE TD KW 3.70 Model # C184T17DK21B Frame 184TC Serv. Factor 1.15 Phase 3 Max Amb 40 Design B Code J Insul Class F Protection NOT Therm.Prot. Eff 100% 87.5 Eff 75% PF 81.1 UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6205 CC Number CC005A CE Yes Bearing PE 6206 Load Type Inverter Type Speed Range NONE Motor Wt. 100 LB Enclosure DP Lubrication POLYREX EM Nameplate 081284 Mounting RIGID Rotation REV
