2HP LEESON 1725RPM 145TC DP 3PH MOTOR G120275.00

2HP LEESON 1725RPM 145TC DP 3PH MOTOR G120275.00

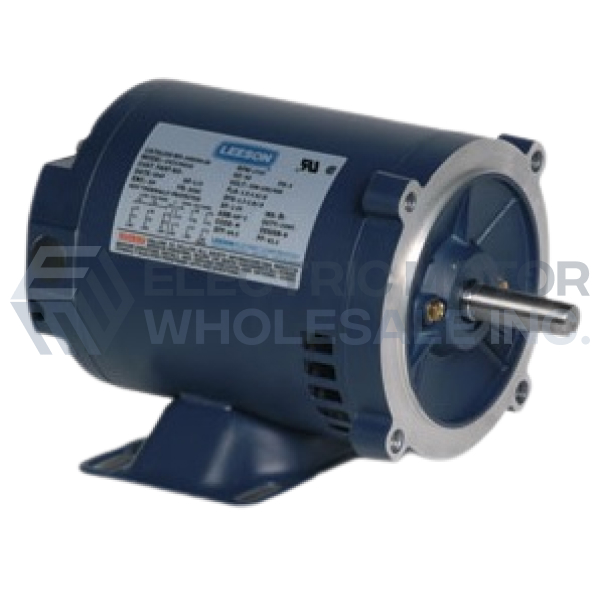

Picture is for reference only.

Part Number:

G120275.00

Model/Spec Number:

C145T17DK13B

Manufacturer:

Leeson Obsolete
G120275.00 LEESON 2HP Three Phase DP Motor is designed for use where water and dust exposure is moderate.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

40 lbs

Dimensions:

12 x 20 x 12 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

General Purpose

Output HP:

2//1.5

Output KW:

1.5

Output RPM:

1725//1425

Frame Size NEMA:

145TC

Mount NEMA:

C Face With Base

Enclosure NEMA:

DP

Enclosure IEC:

IP22

Voltage:

208-230/460//190/380

Motor Drawing

Connection Diagram

Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 6.4-6 F.L. Amps 3 F.L. Amps 5.4/2.7
S. F Amps 7-6.4 S. F Amps 3.2 S. F Amps 6.6/3.3
RPM 1800 Hertz 60/50
HP 2 Duty CONTINUOUS TYPE TD
KW 1.5 Model # C145T17DK13B
Frame 145TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code L
Insul Class B Protection NOT Therm.Prot.
Eff 100% 84 Eff 75%   PF 77.4
UL Yes CSA Yes Bearing OPE 6203
CC Number 005A CE Yes Bearing PE 6205
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 38 LB Enclosure DP Lubrication POLYREX EM
Nameplate 080885 Mounting RIGID C Rotation REV
Assembly   Shaft Dia. 7/8 IN Ext. Diag. 005010.01
Cust Part No   Outline 028669-750 Ext. Diag2
Packaging B Outline Dash No   Winding T634369
