2HP LEESON 1725RPM 56H ODP 1PH ECOSAVER MOTOR E113608.00

2HP LEESON 1725RPM 56H ODP 1PH ECOSAVER MOTOR E113608.00

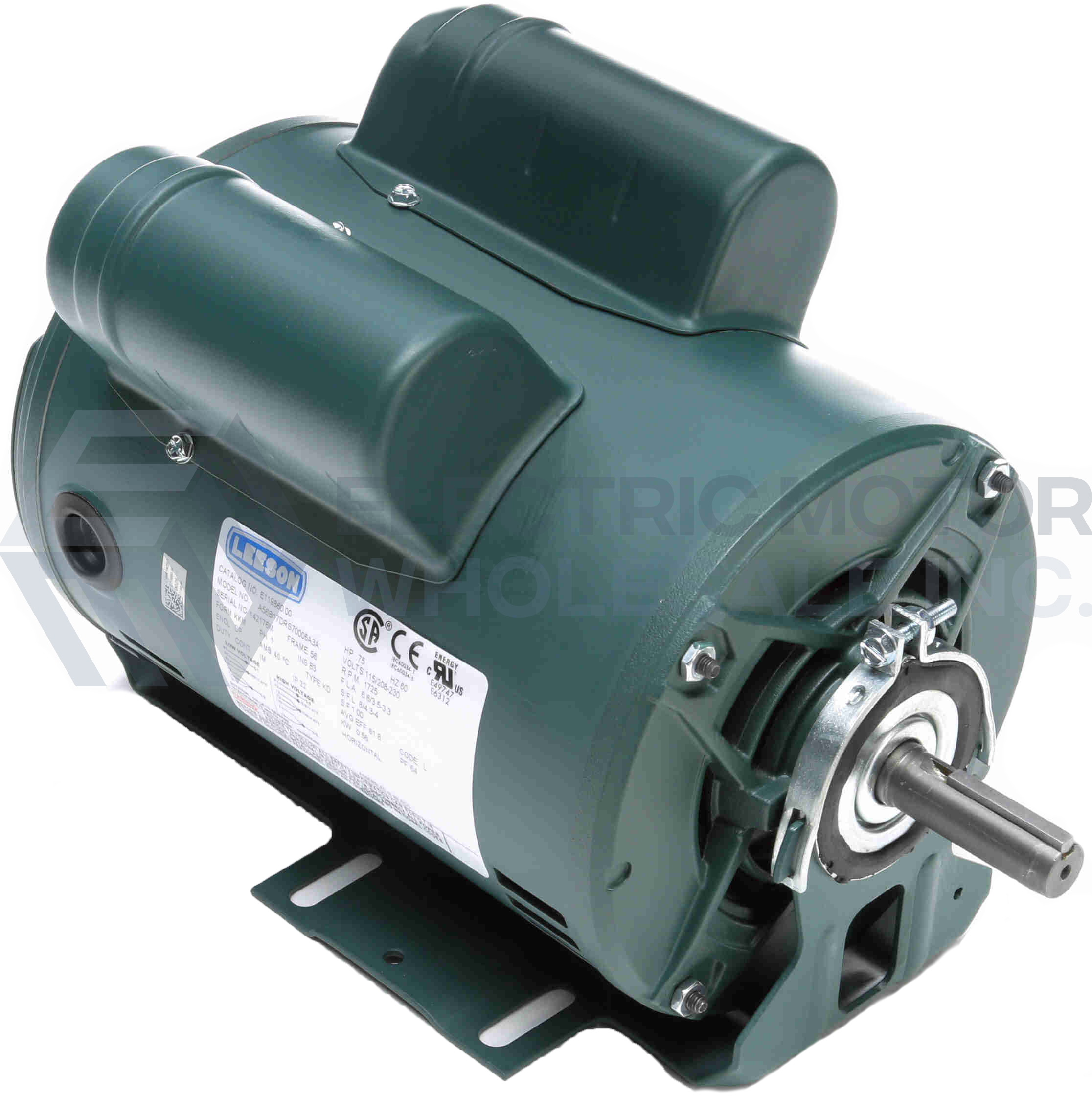

ECOSAVER 1PH CSCR.jpg

Part Number:

E113608.00

Model/Spec Number:

A05617DRS70010A3

Manufacturer:

Leeson Obsolete
E113608.00 LEESON 2HP Single Phase Resilient Base ECOSAVER Motor for use where water and dust exposure is minimal. Ideally suited for use on pumps, compressors, blowers, fans, and belted applications.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

47 lbs

Dimensions:

10 x 22 x 10 inches

HS Code:

8501.40.6040

UPC:

691720990674

Technical Details

Application:

HVAC

Output HP:

2

Output KW:

1.5

Output RPM:

1725

Frame NEMA:

56H

Mount NEMA:

Resilient Base

Enclosure NEMA:

ODP

Enclosure IEC:

IP22

Voltage:

115/208-230

Frequency (Hz):

60

Product Information Packet
