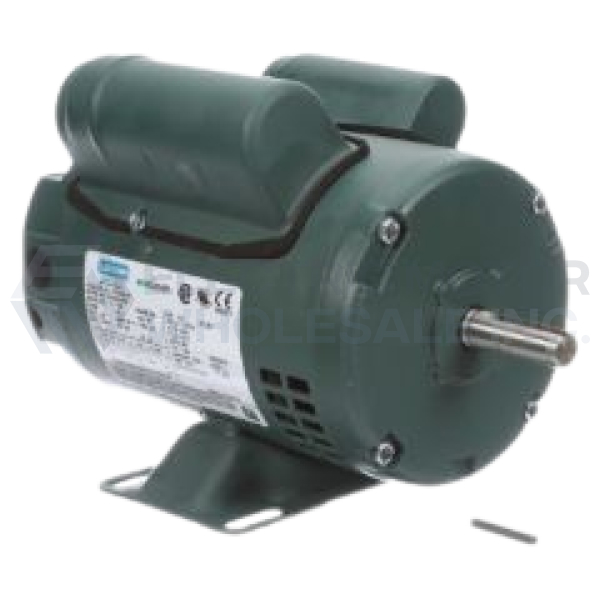

3/4HP LEESON 3515RPM S56 DP 1PH ECOSAVER MOTOR E100053.00

3/4HP LEESON 3515RPM S56 DP 1PH ECOSAVER MOTOR E100053.00


Part Number:

E100053.00

Model/Spec Number:

M4K34DH13A

Manufacturer:

Leeson Obsolete
E100053.00 LEESON 3/4HP Single Phase ECOSAVER Motor satisfies the mandated efficiencies of NEMA Premium and carries a three year warranty. For use where water and dust exposure is moderate.

Item Discontinued

Click below to request an agent review potential options.

Weight:

28 lbs

Dimensions:

11 x 17 x 10 inches

HS Code:

8501.40.4040

UPC:

691720990797

Technical Details

Application:

General Purpose

Output HP:

3/4

Output KW:

0.56

Output RPM:

3515

Frame NEMA:

S56

Mount NEMA:

Base Mount

Enclosure NEMA:

DP

Enclosure IEC:

IP12

Voltage:

115/230

Frequency (Hz):

60

Product Information Packet

LEESON Single Phase ECOSAVER Motors satisfies the mandated efficiencies of NEMA Premium and carries a three year warranty. For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans and other standard industrial applications.

Features Include:

  • Meets or exceeds NEMA service factors
  • Continuous duty
  • Thermally protected ratings
  • Pressure washer duty
  • High-quality double shielded ball bearings
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval
  • Non-USA Manufactured, MX.
Image for 3/4HP BALDOR 3450RPM 56 OPEN 1PH SUPER-E MOTOR EL11306A

3/4HP BALDOR 3450RPM 56 OPEN 1PH SUPER-E MOTOR EL11306A

MSRP: $841.00

Regular Price

$

614

49

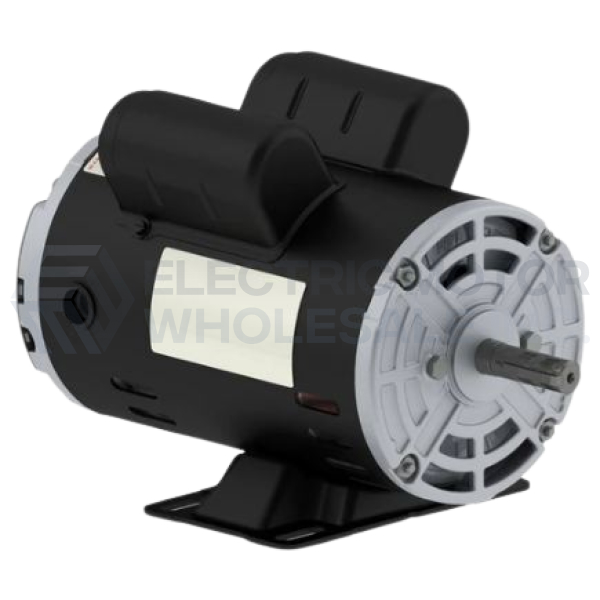

Image for 3/4HP WEG 3510RPM 56 ODP 1PH MOTOR .7536OT1B56-S
