40HP LEESON 1782RPM 324T TEFC 3PH ULTIMATE-E MOTOR B194232.00

40HP LEESON 1782RPM 324T TEFC 3PH ULTIMATE-E MOTOR B194232.00

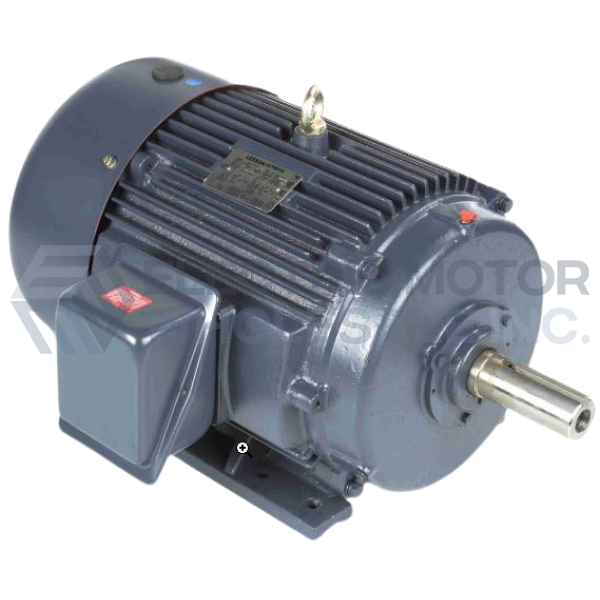

Picture is for reference only.

Part Number:

B194232.00

Model/Spec Number:

C324T17FB10

Manufacturer:

Leeson Obsolete
B194232.00 LEESON 40HP ULTIMATE-E three phase motor with Roller Bearings carries a three year warranty and meets or exceeds the mandated efficiencies of NEMA and EPAct. These motors have roller bearings at the drive end only for belted load operation only.

Informational Item

This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.

Weight:

780 lbs

Dimensions:

39 x 52 x 39 inches

HS Code:

8501.53.0000

UPC:

691720992944

Technical Details

Brand:

Leeson

Application:

General Purpose

Output HP:

40

Output KW:

30

Output RPM:

1782

Frame Size NEMA:

324T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

230/460

Motor Drawing

Connection Diagram
