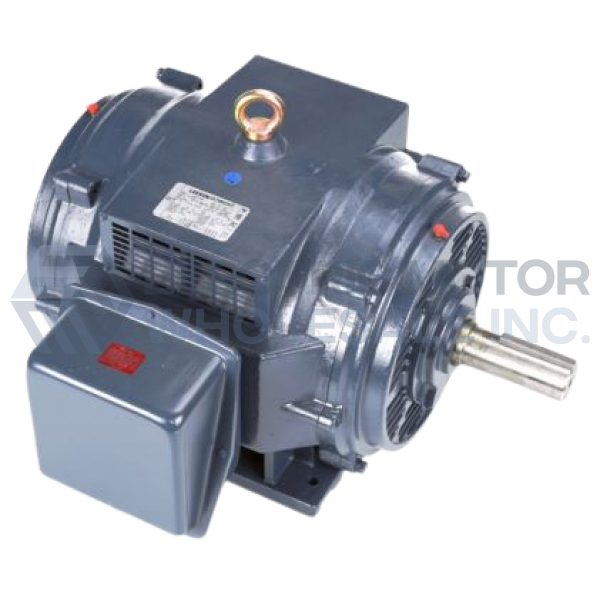

75HP LEESON 1785RPM 365T DP 3PH ULTIMATE-E MOTOR 199720.00

75HP LEESON 1785RPM 365T DP 3PH ULTIMATE-E MOTOR 199720.00


Part Number:

199720.00

Model/Spec Number:

C365T17DB8

Manufacturer:

Leeson Obsolete
199720.00 LEESON 75HP ULTIMATE-E motor carries a three-year warranty in general purpose and inverter fed applications. This motor meets or exceeds most utility rebate programs and the EPACT federally mandated efficiency levels.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

1,000 lbs

Dimensions:

24 x 36 x 24 inches

HS Code:

8501.52.0000

Technical Details

Brand:

Leeson

Application:

General Purpose

Output HP:

75

Output KW:

56

Output RPM:

1785

Frame Size NEMA:

365T

Mount NEMA:

With Base

Enclosure NEMA:

DP

Enclosure IEC:

IP12

Voltage:

230/460
